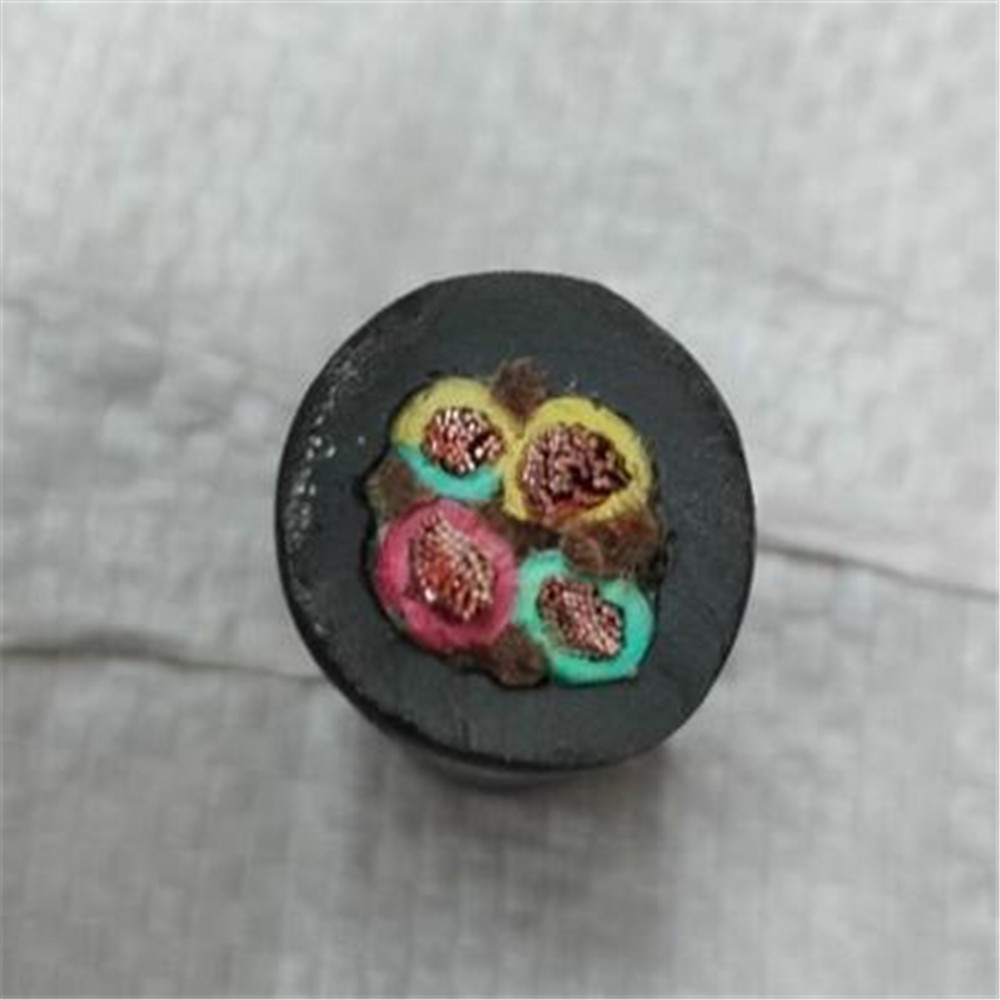

All type of rubber flexible cable
 |
Product Name:
All type of rubber flexible cable
Number :
 |
Product Description:
All type of rubber flexible cable
Implementation of standards: JB8735.-1998.
Features:
1, rated voltage 300 / 500V (YZ type), 450 / 750V (YC type)
2, the core of the long-term charge permit working temperature should not exceed 65 ℃
3, "W" type cable with weather resistance and a certain oil resistance, suitable for outdoor or in contact with the occasion of the use of oil
4, ZR-type cable with flame retardant properties
Specifications:
1, the number of cores: 2 to 24 cores;
nominal cross-section: 0.5 ~ 2.5mm2 (conductor structure for the B class or R class structure)
|
Model
|
Name
|
Application
|
||||
|
YQ, YQW
|
Light rubber sheathed flexible cable
|
Used for light moving electrical equipment and tools
|
||||
|
YZ, YZW
|
Medium-sized rubber-sheathed flexible cable
|
For a variety of mobile electrical equipment and tools
|
||||
|
YC, YCW
|
Heavy - duty rubber sheathed flexible cable
|
For a variety of mobile electrical equipment, can withstand the role of a larger mechanical external force
|
||||
|
YH
|
Natural rubber welding machine cable
|
High-strength rubber-sheathed welding cable, commonly known as the welding line for the secondary side of the welding wire and connect the welding clamp, welding machine dedicated cable, which is characterized by large resistance, low voltage.
|
||||
|
model
|
rated voltage （V）
|
No. of cores
|
section area（mm2）
|
|||
|
YQ、YQW
|
300/300
|
2，3
|
0.3-0.5
|
|||
|
YZ、YZW
|
300/500
|
2，3，4，5
|
0.75-6
|
|||
|
YC、YCW
|
450/750
|
1
|
1.5-240
|
|||
|
2
|
1-95
|
|||||
|
3，4
|
1-150
|
|||||
|
5
|
1.5-25
|
|||||
|
YH、YHF
|
450/750
|
1
|
|
|||
|
16-95
|
