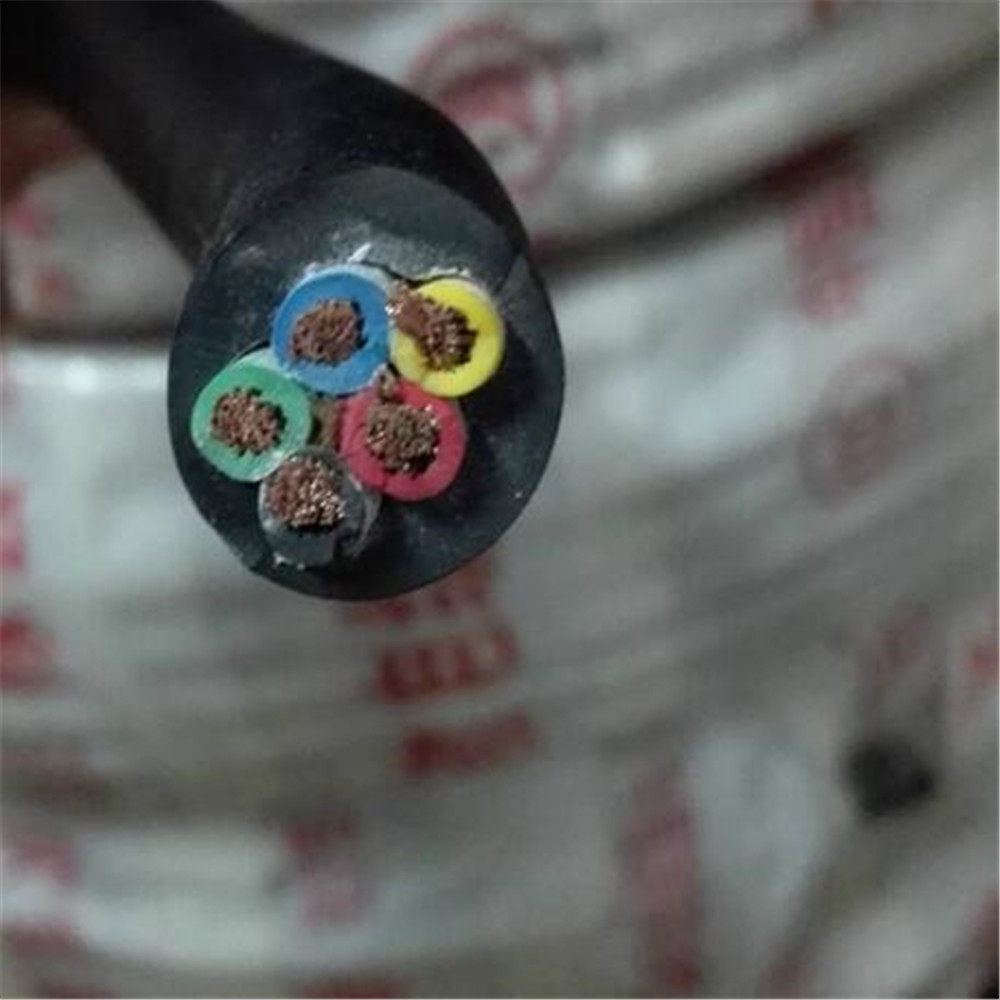

450/750V YC YCW Heavy Model Rubber Sheath Flexible Cable
 |
Product Name:
450/750V YC YCW Heavy Model Rubber Sheath Flexible Cable
Number :
 |
Product Description:
450/750V YC YCW Heavy Model Rubber Sheath Flexible Cable
1.Service Conditions
This product is suitable for A.C voltage 450/750V or below domestic appliances,power-operated tlls and various portable electric equipments.
This product is suitable for A.C voltage 450/750V or below domestic appliances,power-operated tlls and various portable electric equipments.
2.Performance Characteristics
1) YZ model rated voltage U0/U is 300/500 V, YC model is 450/750 V .
2) Long time allow working temperature of wire core is not more than 60 .
3) W model cable has the property of durability , so it is suitable for outdoor work touching oil pollution
4) ZR-model cable has the property of fire-resistance.
3. Model Name and Usage Model Name Main Usage
|
Model Name and Usage Model Name Main Usage
|
|
YQ YQW Light Model Rubber Sheath Flexible Cable
|
|
Used for light portable electric equipment and tools
|
|
YZ YZW Middle Model Rubber Sheath Flexible Cable
|
|
Used for various portable electric equipment and tools
|
|
YC YCW Heavy Model Rubber Sheath Flexible Cable
|
|
Used for various portable electric equipment which can bear larger mechnical force effect .
|
Technical Information
Rated Voltage:450/750V
Test Voltage:3000V
Temperature Range:-25°C to +85°C
Ambient Temperature:30° C
Operating Temperature:60°C
Minimum Bending Radius:6 x Ø for cables not exceeding 25mm
Static:8 x Ø for cables exceeding 25mm
Flexing:15 x Ø
|
450/750V YZW&YCW model Rubber Cable
|
||||||
|
Cable Model
|
Conductor Section-area (mm2)
|
Core No. /Dia. (No./mm)
|
Nominal thickness of insulation (mm)
|
Nominal thickness of sheath (mm)
|
Overall Diameter (mm)
|
Max. DC resistance at 20°C(Ω/km)
|
|
YZW
|
2× 0.75
|
24/0.20
|
0.6
|
0.8
|
6.3± 0.2
|
26.0
|
|
YZW
|
2× 1.0
|
32/0.20
|
0.6
|
0.8
|
6.7± 0.2
|
19.5
|
|
YZW
|
3× 0.75
|
24/0.20
|
0.6
|
0.9
|
6.8± 0.2
|
26.0
|
|
YZW
|
3× 1.0
|
32/0.20
|
0.6
|
0.9
|
7.2± 0.2
|
19.5
|
|
YCW
|
1× 1.5
|
30/0.25
|
0.8
|
1.4
|
6.2± 0.2
|
13.3
|
|
YCW
|
1× 2.5
|
49/0.25
|
0.9
|
1.4
|
6.6± 0.2
|
7.98
|
|
YCW
|
1× 4
|
56/0.30
|
1.0
|
1.5
|
7.9± 0.3
|
4.95
|
|
YCW
|
1× 6
|
84/0.30
|
1.0
|
1.6
|
8.7± 0.3
|
3.30
|
|
YCW
|
2× 1.0
|
32/0.20
|
0.8
|
1.3
|
8.3± 0.3
|
19.5
|
|
YCW
|
2× 1.5
|
30/0.25
|
0.8
|
1.5
|
9.3± 0.3
|
13.30
|
|
YCW
|
2× 2.5
|
49/0.25
|
0.9
|
1.7
|
11.2± 0.4
|
7.98
|
|
YCW
|
2× 4.0
|
56/0.30
|
1.0
|
1.8
|
12.8± 0.4
|
4.95
|
|
YCW
|
2× 6.0
|
84/0.30
|
1.0
|
2.0
|
14.4± 0.4
|
3.30
|
|
YCW
|
3× 1.0
|
32/0.20
|
0.8
|
1.4
|
9.0± 0.3
|
19.5
|
|
YCW
|
3× 1.5
|
30/0.25
|
0.8
|
1.6
|
10.1± 0.4
|
13.3
|
|
YCW
|
3× 2.5
|
49/0.25
|
0.9
|
1.8
|
12.1± 0.4
|
7.98
|
|
YCW
|
3× 4.0
|
56/0.30
|
1
|
1.9
|
13.9± 0.4
|
4.95
|
|
YCW
|
3× 6.0
|
84/0.30
|
1.0
|
2.1
|
15.4± 0.5
|
3.30
|
|
YCW
|
4× 1.0
|
32/0.20
|
0.8
|
1.5
|
10.0± 0.4
|
19.5
|
|
YCW
|
4× 1.5
|
30/0.25
|
0.8
|
1.7
|
11.1± 0.4
|
13.3
|
|
YCW
|
4× 2.5
|
49/0.25
|
1.0
|
1.9
|
13.3± 0.4
|
7.98
|
|
YCW
|
4× 4.0
|
56/0.30
|
1.0
|
2.0
|
15.2± 0.5
|
4.95
|
|
YCW
|
4× 6.0
|
84/0.30
|
0.6
|
2.3
|
17.2± 0.5
|
3.3
|
|
YCW
|
5× 1.0
|
32/0.20
|
0.6
|
1.6
|
1.0± 0.4
|
19.5
|
|
YCW
|
5× 1.5
|
30/0.25
|
0.8
|
1.8
|
12.2± 0.4
|
13.3
|
|
YCW
|
5× 2.5
|
49/0.25
|
0.9
|
2.0
|
14.6± 0.5
|
7.98
|
|
YCW
|
5× 4.0
|
56/0.30
|
1.0
|
2.2
|
16.9± 0.5
|
4.95
|
|
YCW
|
5× 6.0
|
84/0.30
|
1.0
|
2.5
|
19.1± 0.6
|
|
|
3.30
|
