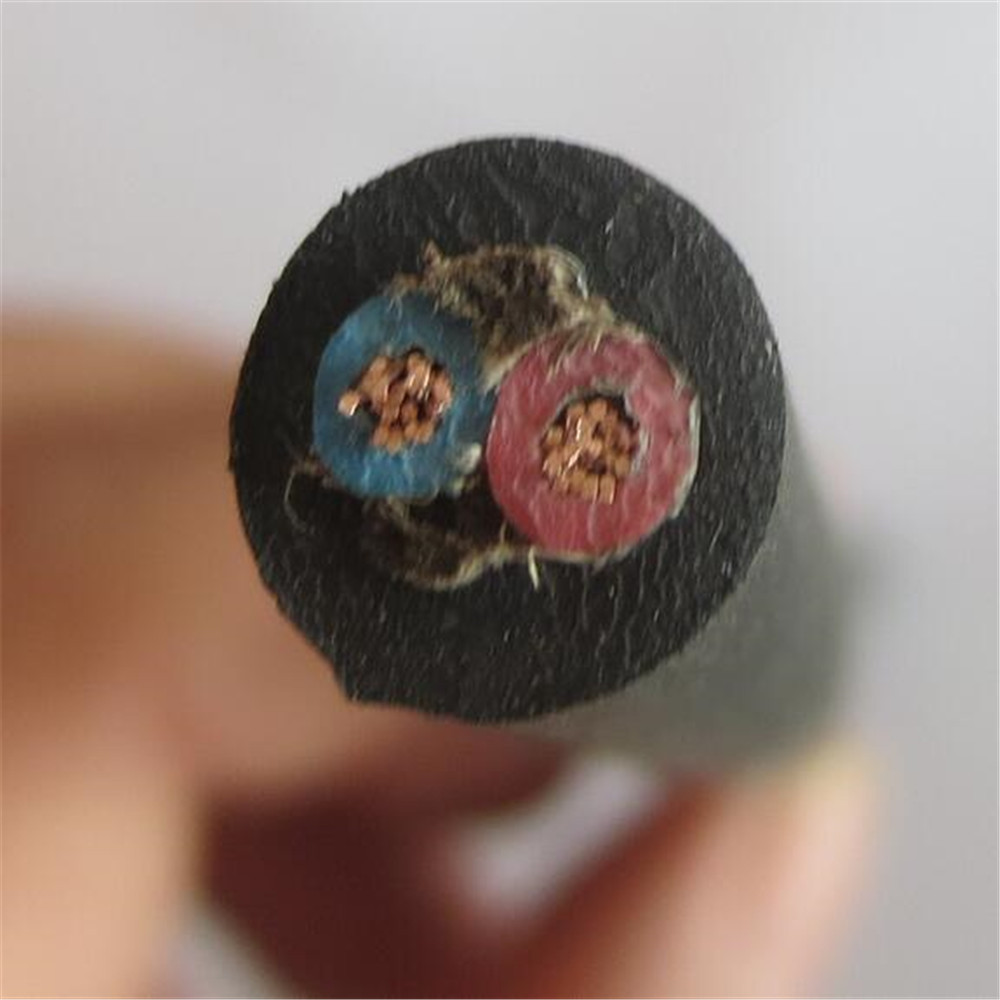

YZ, YZW Model Medium type rubber sheathed cable
 |
Product Name:
YZ, YZW Model Medium type rubber sheathed cable
Number :
 |
Product Description:
YZ, YZW Model Medium type rubber sheathed cable
Product Type: YZ, YZW
Implementation of standards: GB5013-2008
Product Features:
1, rated voltage: 300 / 500V and below
2, the working temperature: not more than 65 ℃
3, conductor: stranded oxygen-free copper wire
5, insulation: composite rubber
6, sheath: composite rubber
7, Color: Black
Features / Uses:
This product is suitable for AC rated voltage 300 / 500V and below household appliances, power tools and various types of mobile electrical equipment. W-type cable with weather resistance and a certain oil resistance, suitable for outdoor or contact with the occasion of the use of oil. ZR-type cable with flame retardant properties.
Specifications Structure and technical parameters:
|
YZ, YZW Model Medium type rubber sheathed cable
|
|||||||
|
Nominal section（mm2）
|
No./Dia（mm）
|
Average dia.（mm）
|
Reference weight(KG/KM)
|
Conductol resistance at 20℃(Ω/km)
|
|||
|
min
|
max
|
YZ
|
YZW
|
bare copper
|
tinned copper
|
||
|
2×0.75
|
240/0.20
|
5.7
|
7.4
|
84
|
94
|
26
|
26.7
|
|
2×1.0
|
32/0.50
|
6.1
|
8
|
94
|
101
|
19.5
|
20
|
|
2×1.5
|
30/0.25
|
7.6
|
9.8
|
113
|
125
|
13.3
|
13.7
|
|
2×2.5
|
49/0.25
|
9
|
11.6
|
170
|
185
|
7.98
|
8.21
|
|
2×4
|
56/0.30
|
10.8
|
13.8
|
246
|
264
|
4.95
|
5.09
|
|
2×6
|
84/0.30
|
12.3
|
16.8
|
366
|
395
|
3.3
|
3.39
|
|
3×0.75
|
24/0.20
|
6.2
|
8.1
|
110
|
120
|
26
|
26.7
|
|
3×1.0
|
32/0.20
|
6.5
|
8.5
|
130
|
151
|
19.5
|
20
|
|
3×1.5
|
30/0.25
|
8
|
10.4
|
160
|
180
|
13.3
|
13.7
|
|
3×2.5
|
49/0.25
|
9.6
|
12.4
|
220
|
240
|
7.98
|
8.21
|
|
3×4
|
56/0.30
|
11.3
|
14.3
|
302
|
332
|
4.95
|
5.09
|
|
3×6
|
84/0.30
|
12.8
|
17.8
|
452
|
498
|
3.3
|
3.39
|
|
4×0.75
|
24/0.20
|
6.8
|
8.8
|
130
|
140
|
26
|
26.7
|
|
4×1.0
|
32/0.20
|
7.1
|
9.3
|
145
|
160
|
19.5
|
20
|
|
4×1.5
|
30/0.25
|
9
|
11.6
|
169
|
212
|
13.3
|
13.7
|
|
4×2.5
|
49/0.25
|
10.7
|
13.8
|
191
|
294
|
7.98
|
8.21
|
|
4×4
|
56/0.30
|
12.8
|
16.3
|
371
|
398
|
4.95
|
5.09
|
|
4×6
|
84/0.30
|
14.3
|
19.8
|
564
|
594
|
3.3
|
|
|
3.39
|
