YH,YHF model welding machine cable
 |
Product Name:
YH,YHF model welding machine cable
Number :
 |
Product Description:

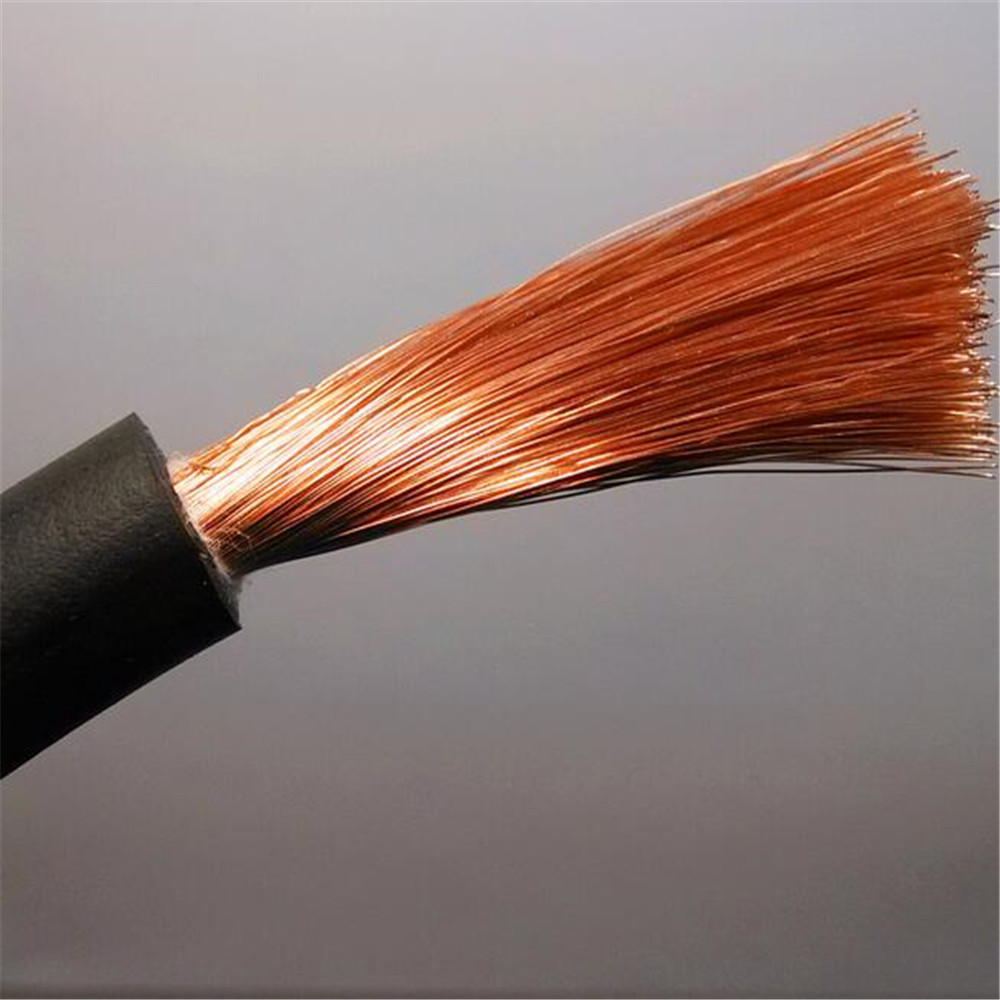

YH,YHF model welding machine cable
Product Type: YH, YHF
Implementation of standards: GB5013-2008
Product Features:
1, the working temperature: not more than 65 ℃
2, conductor: stranded oxygen-free copper wire
3, insulation: composite rubber
4, Color: Black
Features / Uses:
This product is suitable for ground voltage does not exceed 200V and 400V peak pulsating DC welding with the secondary side of the wiring and welding clamp.
Model Notes:
|
Model
|
Name
|
Working temperature
|
||||||||
|
YH
|
Light model rubber sheath flexible cable
|
≤(℃)65
|
||||||||
|
YHF
|
Horoprene rubber or other syntheitic sheath welding machine cable
|
|||||||||
|
Nominal section（mm2）
|
No./Dia（mm）
|
Average dia.（mm）
|
Reference weight(KG/KM)
|
Conductol resistance at 20℃(Ω/km)
|
||||||
|
min
|
max
|
YH
|
YHF
|
bare copper
|
tinned copper
|
|||||
|
10
|
322/0.20
|
7.1
|
9.2
|
146
|
153.51
|
1.91
|
1.95
|
|||
|
16
|
513/0.20
|
7.7
|
11
|
218.9
|
230.44
|
1.21
|
1.24
|
|||
|
25
|
798/0.20
|
10.1
|
12.7
|
316.6
|
331.15
|
0.78
|
0.795
|
|||
|
35
|
1121/0.20
|
11.4
|
14.2
|
426
|
439.87
|
0.554
|
0.565
|
|||
|
50
|
1596/0.20
|
13.2
|
16.5
|
592.47
|
610.55
|
0.376
|
0.393
|
|||
|
70
|
2214/0.20
|
15.3
|
19.2
|
790
|
817.52
|
0.272
|
0.277
|
|||
|
95
|
2997/0.20
|
17.1
|
21.4
|
1066.17
|
1102.97
|
0.206
|
0.21
|
|||
|
120
|
1702/0.30
|
19.2
|
23.5
|
1348.25
|
1392.55
|
0.161
|
0.164
|
|||
|
150
|
2135/0.30
|
21.1
|
26.4
|
1687.5
|
1698.72
|
0.129
|
0.132
|
|||
|
185
|
1443/0.40
|
22.2
|
28.3
|
1983.8
|
2020.74
|
0.106
|
0.108
|
|||
