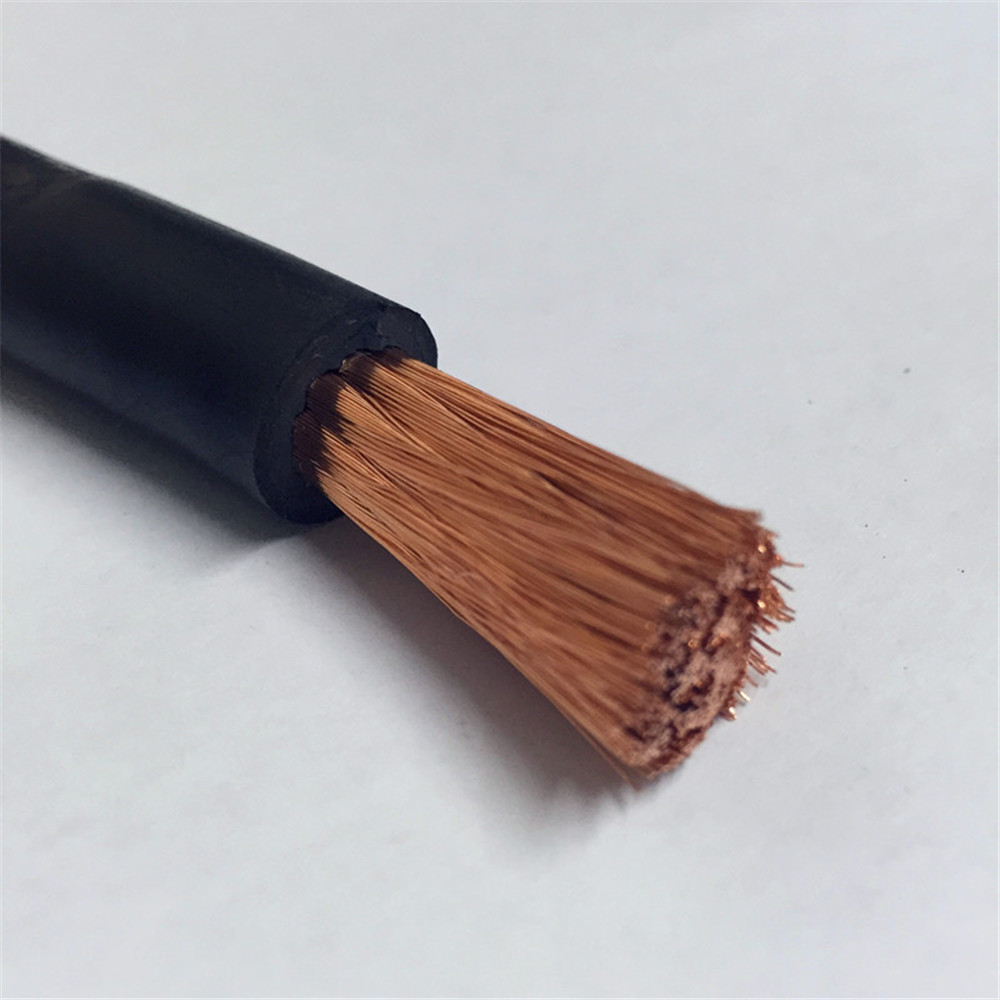

H01N2-E model high flexible welding cable
 |
Product Name:
H01N2-E model high flexible welding cable
Number :
 |
Product Description:
H01N2-E model high flexible welding cable
Application
Welding cable suitable for connecting cable between the hand electrode and the welding apparatus. Suitable for flexible use under adverse conditions such as automobile and ship manufacturing conveyors welding robots assembly lines etc. This cable maintains its high flexibility even when exposed to inert gas, ozone, light, oil etc. Suitable for use in dry and moist rooms as well as for outdoor installation.
Welding cable suitable for connecting cable between the hand electrode and the welding apparatus. Suitable for flexible use under adverse conditions such as automobile and ship manufacturing conveyors welding robots assembly lines etc. This cable maintains its high flexibility even when exposed to inert gas, ozone, light, oil etc. Suitable for use in dry and moist rooms as well as for outdoor installation.
Construction
Conductor:Plain copper conductors
Separator:Polyester foil or tape
Outer Sheath:Neoprene black
Stranding H01N2-D:According to VDE 0295 class 5
Conductor:Plain copper conductors
Separator:Polyester foil or tape
Outer Sheath:Neoprene black
Stranding H01N2-D:According to VDE 0295 class 5
Technical Information
Rated Voltage:100V
Test Voltage: 1000V
Temperature Range:
Flexing: Static:
-25°C to + 80°C
-40°C to +80°C
Bending Radius:
H01N2-D: 12 x Ø
H01N2-E: 10 x Ø
Rated Voltage:100V
Test Voltage: 1000V
Temperature Range:
Flexing: Static:
-25°C to + 80°C
-40°C to +80°C
Bending Radius:
H01N2-D: 12 x Ø
|
H01N2-E rubber cable with extreme high flexibility
|
|||
|
Core*Section area (mm2)
|
Nominal O/Dia (mm)
|
Copper weight kg/100m
|
Weight kg/100m
|
|
10
|
8.4
|
9.6
|
11.9
|
|
16
|
9.5
|
15.4
|
18.1
|
|
25
|
11
|
24
|
27
|
|
35
|
12.5
|
33.6
|
36.3
|
|
50
|
15
|
48
|
52.8
|
|
70
|
17
|
67.2
|
71.6
|
|
95
|
19.5
|
91.2
|
101.2
|
|
120
|
21.5
|
115.2
|
109
|
