copper conductor rubber insulation battery cable
 |
Product Name:

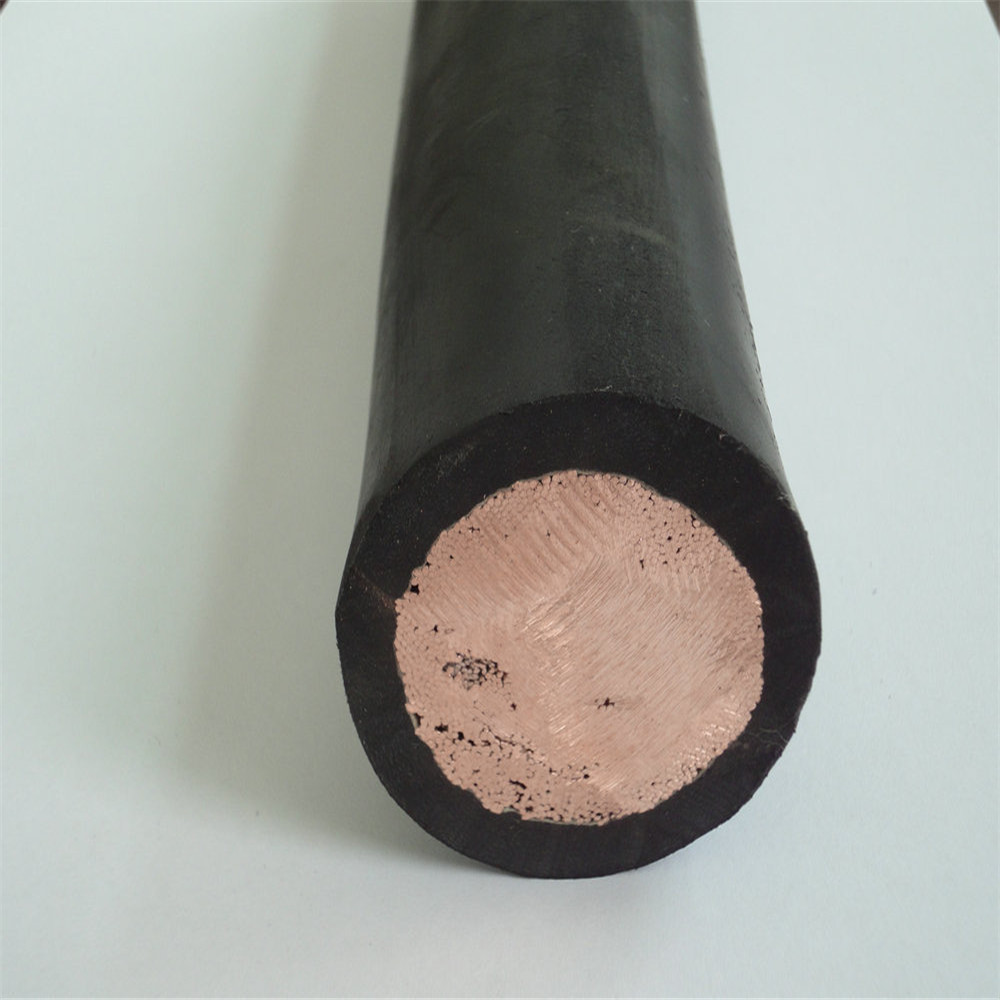

copper conductor rubber insulation battery cable
Number :
 |
Product Description:
Welding Cable H01n2-D model
Product Description
Application
Welding cable suitable for connecting cable between the hand electrode and the welding apparatus. Suitable for flexible use under adverse conditions such as automobile and ship manufacturing conveyors welding robots assembly lines etc. This cable maintains its high flexibility even when exposed to inert gas, ozone, light, oil etc. Suitable for use in dry and moist rooms as well as for outdoor installation.
Construction
Conductor:Plain copper conductors
Separator:Polyester foil or tape
Outer Sheath:Neoprene black
Stranding H01N2-D:According to VDE 0295 class 5
Technical Information
Rated Voltage:100V
Test Voltage: 1000V
Temperature Range:
Flexing: Static:
-25°C to + 80°C
-40°C to +80°C
Bending Radius:
H01N2-D: 12 x Ø
H01N2-E: 10 x Ø
Feature
1.High flexibility properties.
2.Outstanding toughness and durability.
3.High resistance to cuts, tears and abrasion.
4.Resistance to oil, solvents and chemicals.
5.The permissible continuous operating temperature is 65°C
|
H01N2-D Welding Cable
|
|||
|
Core*Srction area (mm2)
|
Nominal O/Dia (mm)
|
Copper weight kg/100m
|
Weight kg/100m
|
|
10
|
10
|
9.6
|
14
|
|
16
|
11.5
|
15.4
|
21
|
|
25
|
13
|
24
|
30
|
|
35
|
14.5
|
33.6
|
41
|
|
50
|
17
|
48
|
56
|
|
70
|
19
|
67.2
|
79
|
|
95
|
21.5
|
91.2
|
105
|
|
120
|
24
|
115.2
|
130
|
|
150
|
26
|
144
|
163
|
|
185
|
29
|
177.6
|
|
