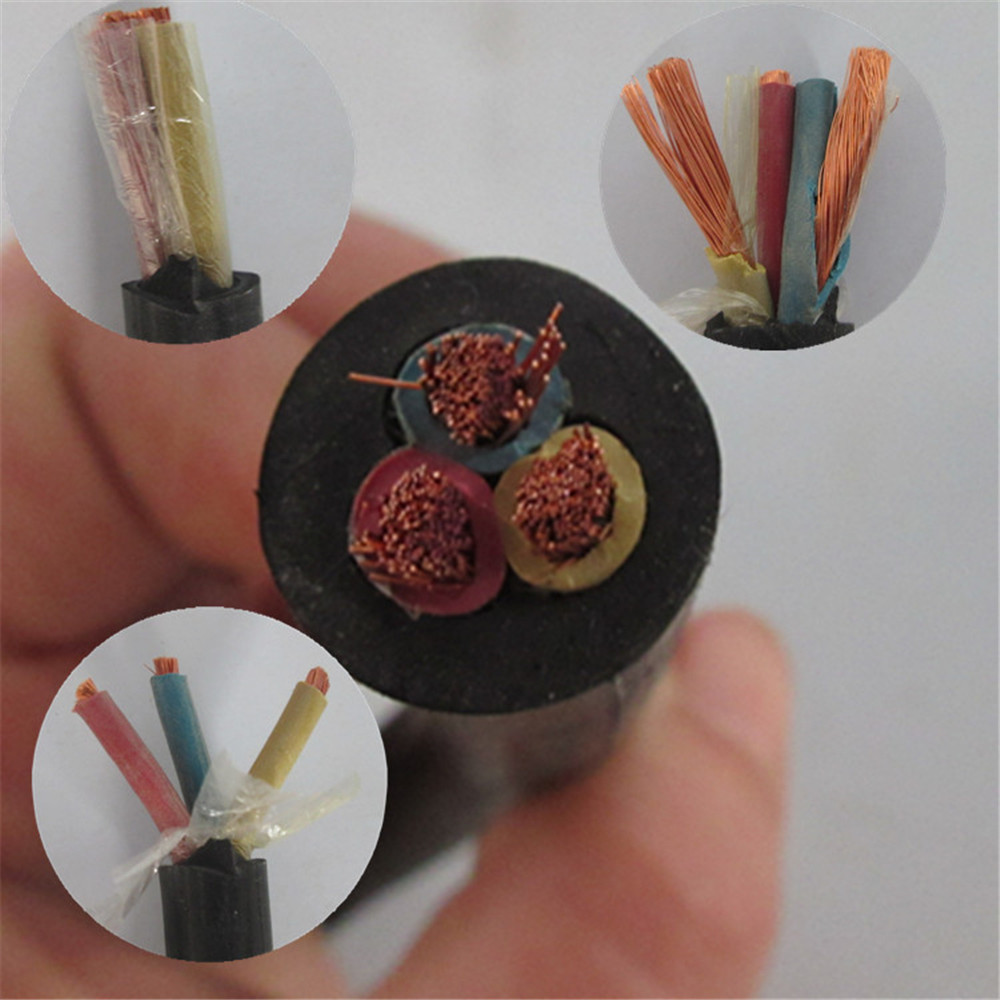

flexible low voltage rubber cable YZ YC YH model
 |
Product Name:
flexible low voltage rubber cable YZ YC YH model
Number :
 |
Product Description:
Flexible low voltage rubber cable YZ YC YH model
Rubber insulated wires and cables is suitable for power device with moving installation and rated voltage up to
and including 450/750V.
Characteristics
1. Rated power-frequency voltage U0/U: 450/750V, 300/500V and 300/300V.
2. Maximum permitted operating temperature of conductor is 60°C.
3. Permitted lowest working temperature is -35°C.
4. Cables can be used at places contaminated by mineral oil and fuel oil.
5. D>25mm
The minimum bending radius is over 6 times of cable diameter.
D≤25mm
The minimum bending radius is over 4 times of cable diameter.
(D-Diameter of the cable)
|
Type
|
Name
|
|
YQ
|
NR/SBR rubber insulated NR/SBR rubber sheathed flexible cables (wires) for light duty
|
|
YQW
|
NR/SBR rubber insulated neoprene rubber sheathed flexible cables (wires) for light duty
|
|
YZ
|
NR/SBR rubber insulated NR/SBR rubber sheathed flexible cables (wires) for middle duty
|
|
YZW
|
NR/SBR rubber insulated neoprene rubber sheathed flexible cables (wires) for middle duty
|
|
YC
|
NR/SBR rubber insulated NR/SBR rubber sheathed flexible cables (wires) for heavy duty
|
|
YCW
|
NR/SBR rubber insulated neoprene rubber sheathed flexible cables (wires) for heavy duty
|
|
YH
|
NR/SBR rubber sheathed arc welding cable
|
|
450/750V YZW&YCW model Rubber Cable
|
||||||
|
Cable Model
|
Conductor Section-area (mm2)
|
Core No. /Dia. (No./mm)
|
Nominal thickness of insulation (mm)
|
Nominal thickness of sheath (mm)
|
Overall Diameter (mm)
|
Max. DC resistance at 20°C(Ω/km)
|
|
YZW
|
2× 0.75
|
24/0.20
|
0.6
|
0.8
|
6.3± 0.2
|
26.0
|
|
YZW
|
2× 1.0
|
32/0.20
|
0.6
|
0.8
|
6.7± 0.2
|
19.5
|
|
YZW
|
3× 0.75
|
24/0.20
|
0.6
|
0.9
|
6.8± 0.2
|
26.0
|
|
YZW
|
3× 1.0
|
32/0.20
|
0.6
|
0.9
|
7.2± 0.2
|
19.5
|
|
YCW
|
1× 1.5
|
30/0.25
|
0.8
|
1.4
|
6.2± 0.2
|
13.3
|
|
YCW
|
1× 2.5
|
49/0.25
|
0.9
|
1.4
|
6.6± 0.2
|
7.98
|
|
YCW
|
1× 4
|
56/0.30
|
1.0
|
1.5
|
7.9± 0.3
|
4.95
|
|
YCW
|
1× 6
|
84/0.30
|
1.0
|
1.6
|
8.7± 0.3
|
3.30
|
|
YCW
|
2× 1.0
|
32/0.20
|
0.8
|
1.3
|
8.3± 0.3
|
19.5
|
|
YCW
|
2× 1.5
|
30/0.25
|
0.8
|
1.5
|
9.3± 0.3
|
13.30
|
|
YCW
|
2× 2.5
|
49/0.25
|
0.9
|
1.7
|
11.2± 0.4
|
7.98
|
|
YCW
|
2× 4.0
|
56/0.30
|
1.0
|
1.8
|
12.8± 0.4
|
4.95
|
|
YCW
|
2× 6.0
|
84/0.30
|
1.0
|
2.0
|
14.4± 0.4
|
3.30
|
|
YCW
|
3× 1.0
|
32/0.20
|
0.8
|
1.4
|
9.0± 0.3
|
19.5
|
|
YCW
|
3× 1.5
|
30/0.25
|
0.8
|
1.6
|
10.1± 0.4
|
13.3
|
|
YCW
|
3× 2.5
|
49/0.25
|
0.9
|
1.8
|
12.1± 0.4
|
7.98
|
|
YCW
|
3× 4.0
|
56/0.30
|
1
|
1.9
|
13.9± 0.4
|
4.95
|
|
YCW
|
3× 6.0
|
84/0.30
|
1.0
|
2.1
|
15.4± 0.5
|
3.30
|
