Rubber jacket and copper wire conductor H07RN-F cable

Product Name:

Rubber jacket and copper wire conductor H07RN-F cable

Number :

Product Description:

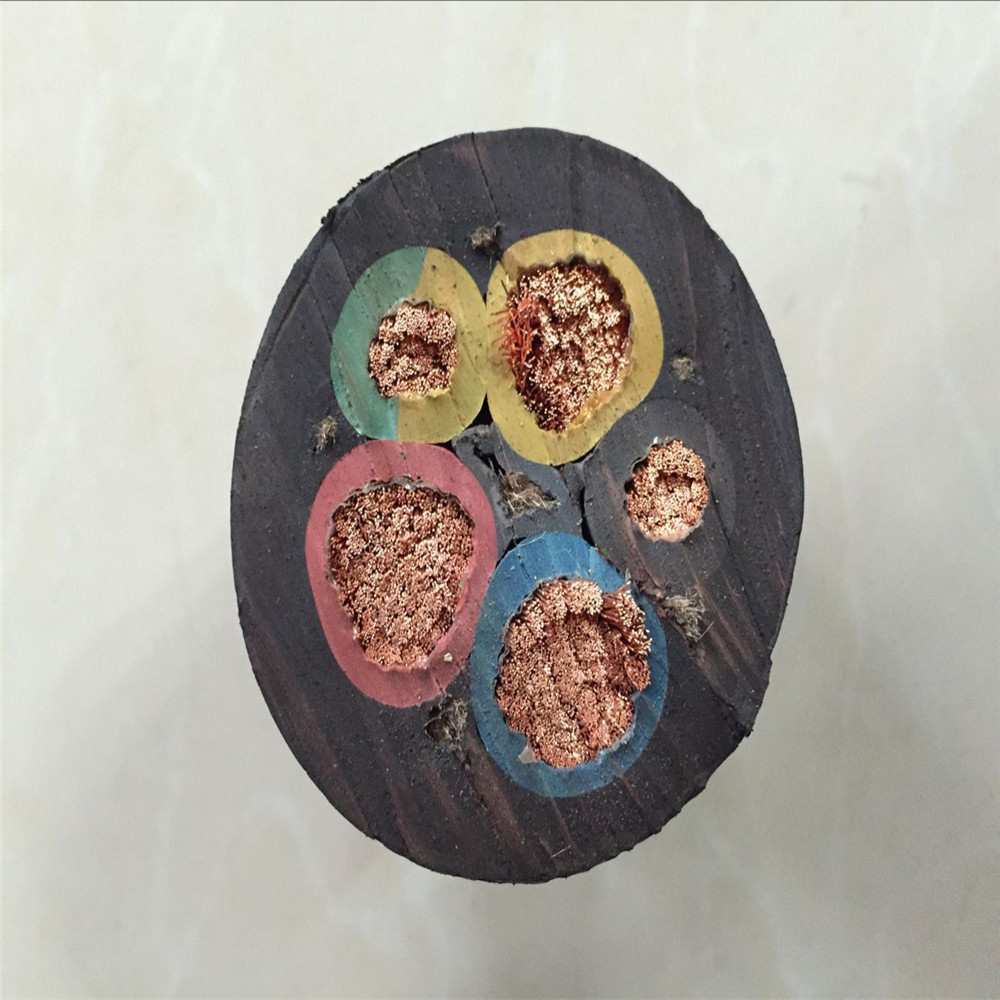

Rubber jacket and copper wire conductor H07RN-F cable

H07RN-F cable

Specification:H07RN-F cables are designed to provide high flexibility and have the capacity to withstand weather, oils/greases, mechanical and thermal stresses

Application:handling equipment, mobile power supplies, worksites, stage and audio visual equipment, port areas and dams. Also for use in drainage and water treatment, cold environments and severe industrial environments.

Standards:They are certified to the standards BS7919, CENELEC HD22.4 S4, verifying their quality

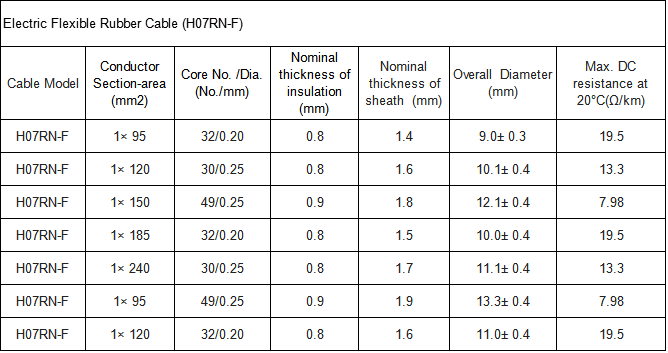

Specification:

1.conductor:Class 5 flexible plain copper to BS EN 60228:2005 (previously BS6360)

2.Insulation: EPR (Ethylene Propylene Rubber) Type EI4 to BS7655

3.Sheath:PCP(Polychloroprene) Type EM2 to BS7655

5.Sheath color:Black

6.Voltage rating:450/750V

7.Temperature rating:Conductor operating temperature -30°C to +60°C (85°C max)

8.Minimum Bending Radius: 6 x overall diameter

9.Conductor Identification: Brown, Blue, Green

10.Core:Single core or multi core
