3*95MM2 IEC 60502-2 Medium Voltage Power Cable 11kV

Product Name:

3*95MM2 IEC 60502-2 Medium Voltage Power Cable 11kV

Number :

Product Description:

3*95MM2 IEC 60502-2 Medium Voltage Power Cable 11kV

Introduction

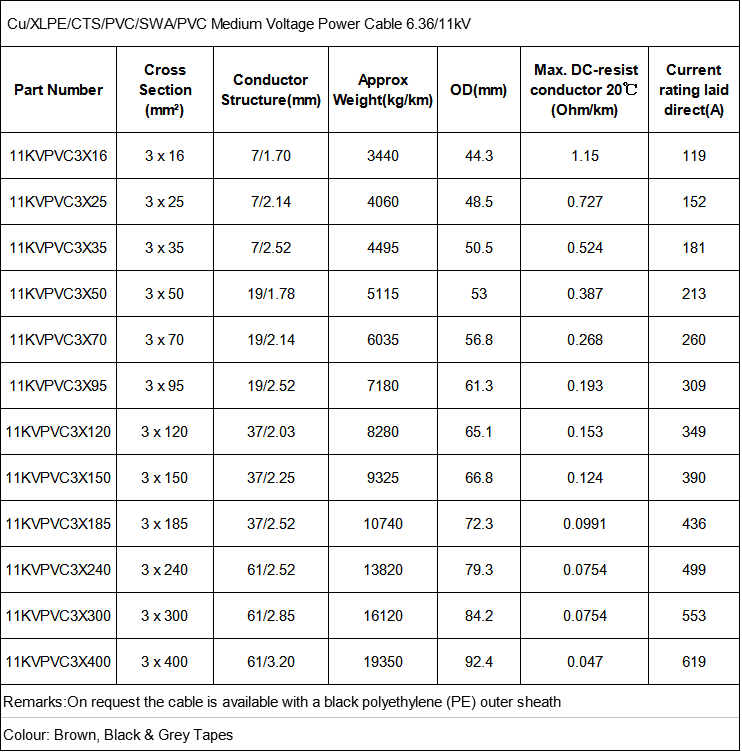

Cu/XLPE/CTS/PVC/SWA/PVC 11kV medium voltage power cable may be used for power networks, in fixed installation outdoors in cable
ducts or directly in the ground. The cable consists of a Class 2 stranded copper conductor, semi conductive conductor screen, XLPE insulation,
semi conductive insulation screen, plain copper tape screen for each core, PVC bedding, galvanized Steel Wire Armour and red PVC outer sheath.
6350/11000 volts to BS6622 and IEC 60502-2, flame retardant to IEC 60332-1.

Construction Characteristics

Conductor material:Copper

Conductor identification:Coloured tapes under screen

Conductor shape:Circular

Conductor flexibility:Stranded class 2

Material of the inner semi-conductor:Semi-conducting compound

Insulation:XLPE

Material of the external semi-conduct:Extruded strippable

Screen:Bare Copper

Inner sheath:PVC

Armour type:Galvanized steel wires or steel wire

Outer sheath:PVC
