Cu/XLPE/SWA/PVC 11kV medium voltage power cable
 |
Product Name:
Cu/XLPE/SWA/PVC 11kV medium voltage power cable
Number :
 |
Product Description:
Cu/XLPE/SWA/PVC 11kV medium voltage power cable
Introduction
Cu/XLPE/SWA/PVC 11kV medium voltage power cable may be used for power networks, in fixed installation outdoors in cable ducts or

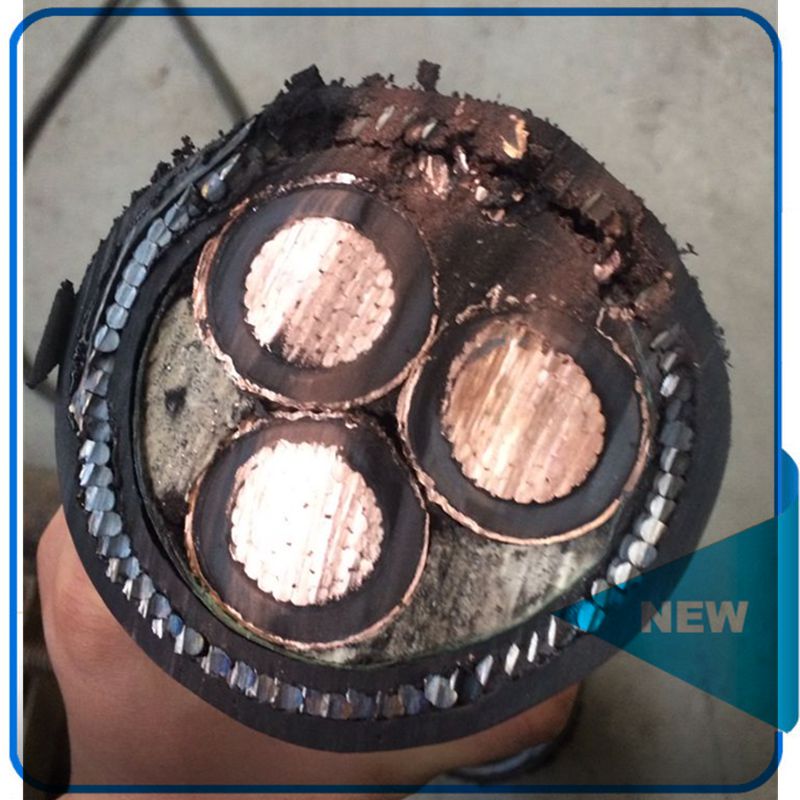

directly in the ground. The cable consists of a Class 2 stranded copper conductor, semi conductive conductor screen, XLPE insulation,
semi conducting layer with a plain copper tape screen, PVC bedding, Aluminium Wire Armour and red PVC outer sheath. 6350/11000 volts to
BS6622 and IEC 60502-2, flame retardant to IEC 60332-1.
directly in the ground. The cable consists of a Class 2 stranded copper conductor, semi conductive conductor screen, XLPE insulation,
semi conducting layer with a plain copper tape screen, PVC bedding, Aluminium Wire Armour and red PVC outer sheath. 6350/11000 volts to
BS6622 and IEC 60502-2, flame retardant to IEC 60332-1.
Construction Characteristics
Conductor material:Copper
Conductor identification:Coloured tape under screen
Conductor shape:Circular
Conductor flexibility:Stranded class 2
Material of the inner semi-conductor:Semi-conducting compound
Insulation:XLPE
Material of the external semi-conduct:Extruded strippable
Screen:Copper tape
Inner sheath:PVC
Armour type:Aluminium wires
Outer sheath:PVC
Colour:Red
Electrical Characteristics
Rated Voltage Uo/U (Um):6350/11000 volts to BS6622 & IEC 60502-2
Usage Characteristics
Minimum installation temperature:0 °C
Maximum installation temperature:60°C
Installation type:Direct burial or in ducts
Minimum operating temperature:-15°C
Maximum operating temperature:90°C
Short-circuit max. conductor temperature:250°C
Flame retardant:Yes,IEC 60332-1
Bending radius:15*Overall diameter
