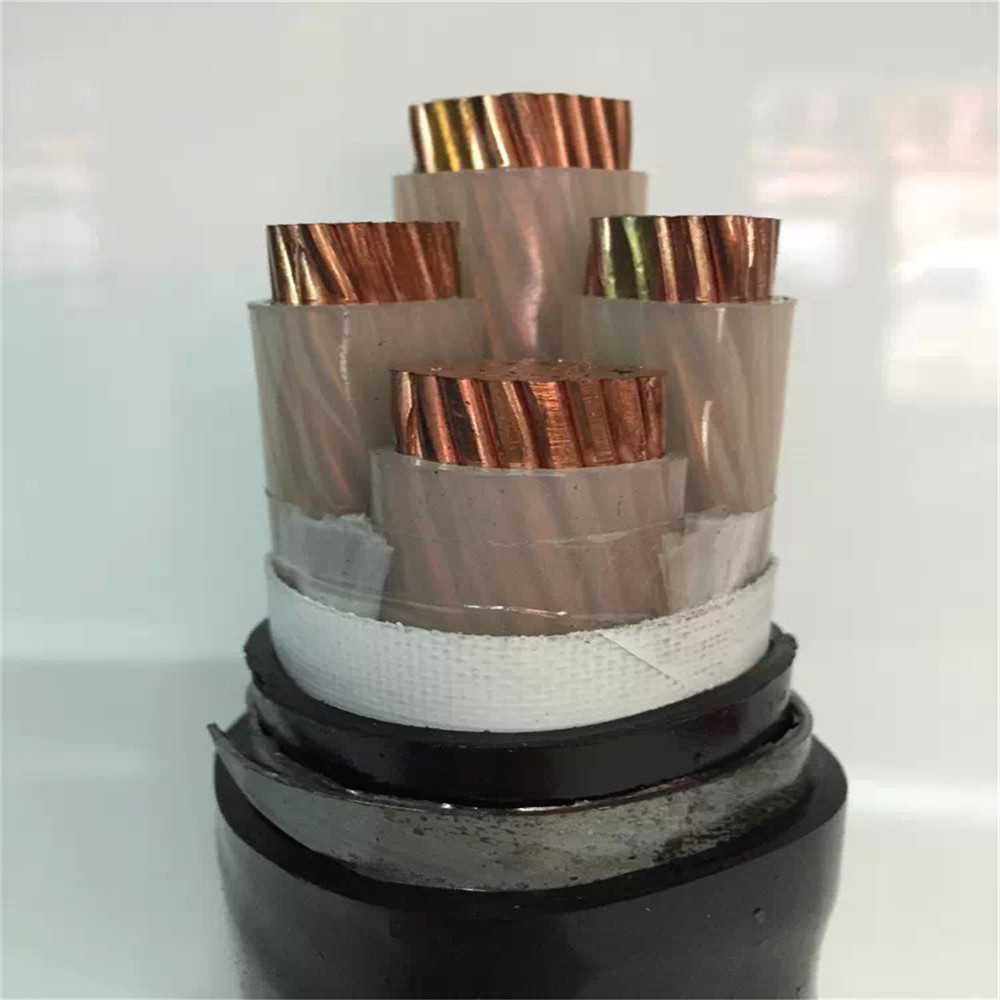

Copper(Aluminum) PVC Cable/PVC Insulated Copper Power Cable

Product Name:

Copper(Aluminum) PVC Cable/PVC Insulated Copper Power Cable

Number :

Product Description:

Copper(Aluminum) PVC Cable/PVC Insulated Copper Power Cable

Application:

These cables are used for electricity supply in low voltage installation system, They are suitable for installation in indoors and outdoors,
in cable ducts, under ground, in power and switching stations, local energy distributions, industrial plants, where there is no risk of
mechanical damage.

Structure:

Conductors

Copper or Aluminium conductor, round standed or Shaped, Class 2 to IEC 60228, BS EN 60228. For smaller sizes, a solid round conductor,
Class 1 as per IEC 60228, BS EN 60228 can also be supplied upon request.

Insulation

PVC Insulation material and thickness shall be as per IEC 60502-1 and BS 6346.

PVC material shall be Type A as per IEC 60502-1 or TI1 as per BS EN 50363.

PVC Insulation material as per SASO 1694 rated for 85°C continuous operation is also available upon special request.

Colour Code

Colour Code (1) :

1 Core: Red or Black

2 Cores: Red, Black

3 Cores: Red, Yellow, Blue

4 Cores: Red, Yellow, Blue, Black

5 Cores: Red, Yellow, Blue, Black, Green

Above 5 Cores: Black Cores with White numerals

Colour Code (2) :

1 Core: Brown or Blue

2 Cores: Brown or Blue

3 Cores: Brown, Black, Grey

4 Cores: Blue, Brown, Black, Grey

5 Cores: Green/Yellow, Blue, Brown, Black, Grey

Above 5 Cores: Black Cores with White numerals

Assembly

Two, Three or Four insulated conductors are laid-up together with non-hygroscopic Inner Sheath fillers and the assembly is bedded with an extruded layer
of PVC. In case of non-armoured cables, this layer may be omitted.
