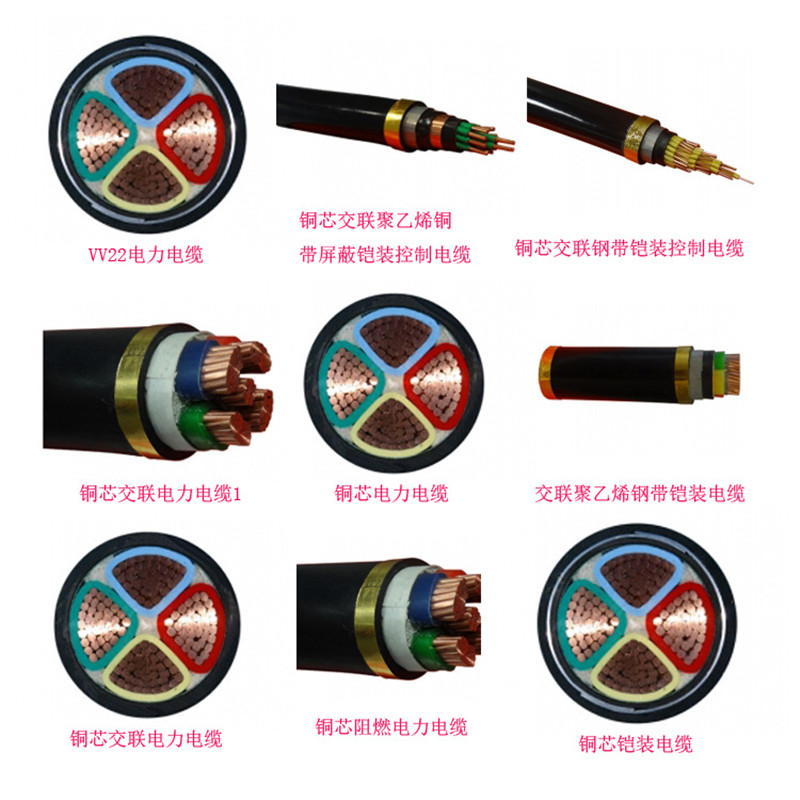

SWA Armoured Power Cable
 |
Product Name:
SWA Armoured Power Cable
Number :
 |
Product Description:
SWA Armoured Power Cable
|
Technical Information
|
|
|
Conductor Material:
|
Copper
|
|
Conductor Identification:
|
Coloured tape under screen
|
|
Conductor Shape:
|
Circular
|
|
Conductor Flexibility:
|
Stranded class 2
|
|
Material of the Inner Semi-conductor:
|
Semi-conducting compound
|
|
Insulation:
|
XLPE (Chemical)
|
|
Armour Type:
|
Aluminium wires
|
|
Screen:
|
Copper tape
|
|
Outer Sheath:
|
PVC
|
|
Inner Sheath:
|
PVC
|
|
Material of the External Semi-conduct:
|
Extruded strippable
|
|
Colour:
|
Red
|
|
Rated Voltage Uo/U (Um):
|
6350/11000V to BS6622 & IEC 60502-2
|
|
Installation Temperature:
|
Minimum: 0°C Maximum: 60°C
|
|
Installation Type:
|
Direct burial or in ducts
|
|
Operating Temperature:
|
Minimum: -15°C Maximum: 90°C
|
|
Short-circuit Maximum Conductor Temperature:
|
250°C
|
|
Flame Retardant:
|
Yes, IEC 60332-1
|
|
Bending Radius:
|
15 x Ø
|
|
Technical Information
|
|
|
Conductor material
|
Copper – IEC60228
|
|
Conductor shape:
|
16mm² & 25mm² – Circular
|
|
35mm² – Sector-shaped or Circular
|
|
|
50mm² up to 400mm² – Sector-shaped
|
|
|
Conductor flexibility:
|
Stranded class 2
|
|
Insulation:
|
XLPE (Cross-linked Polyethylene) – IEC60502
|
|
Inner sheath:
|
PVC – IEC60502
|
|
Armour type:
|
steel wires
|
|
Outer sheath:
|
PVC – IEC60502
|
|
Colour:
|
Black
|
|
Rated Voltage Uo/U (Um):
|
1900/3300 Volts IEC60502-1
|
|
Main Technical Properties
|
|
|
Rated voltage of cable
|
0.6/1(1.2)KV
|
|
D.C. Resistance of conductor
|
According to GB/T3956-2008 or IEC 60228-2004
|
|
Power frequency withstand voltage test for 5 minutes
|
No breakdown at 3.5 KV
|
|
Hot set test for insulation,200ºC 15 min with pressure 20N/cm2
|
≤175%
|
|
Load elongation
|
|
|
Max permanent elongation after cooled
|
≤15%
|
|
Current rating factors for variation in ambient air temperature
|
||||||
|
Ambient air temperature
|
20ºC
|
25ºC
|
30ºC
|
35ºC
|
40ºC
|
45ºC
|
|
Rating factor
|
1.29
|
1.22
|
1.15
|
1.08
|
1
|
0.91
|
|
Current rating for variation in soil temperature
|
|||||
|
Soil temperature
|
20ºC
|
25ºC
|
30ºC
|
35ºC
|
40ºC
|
|
Rating factor
|
1.04
|
1
|
0.96
|
0.92
|
0.87
|
