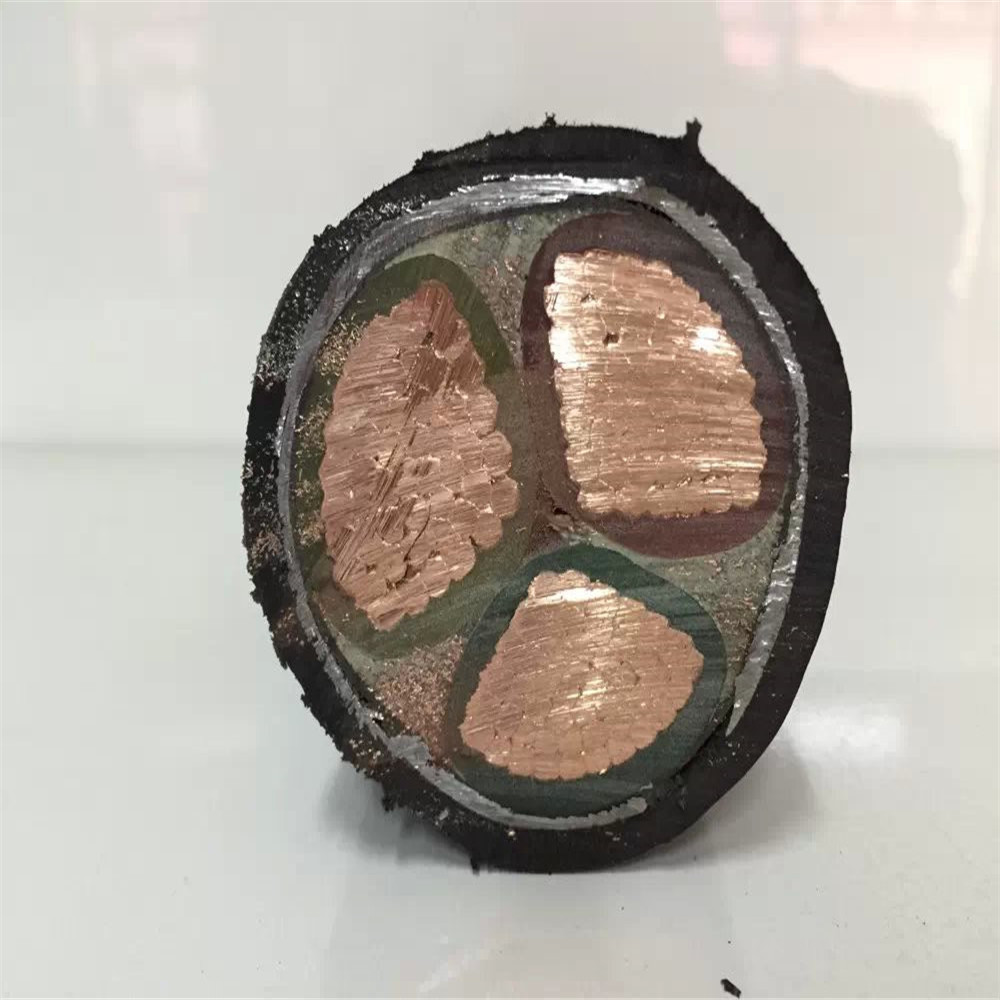

Cu/XLPE/PVC power cable 600/1000V
 |
Product Name:
Cu/XLPE/PVC power cable 600/1000V
Number :
 |
Product Description:
Cu/XLPE/PVC power cable 600/1000V
Application
Cu/XLPE/PVC/SWA/PVC power cable may be used for fixed installation indoors and outdoors in cable ducts or directly in the ground. The steel wire armoured cable is the accepted standard for underground installations, designed for use in mains supply electricity. These cables are provided with mechanical protection and are therefore suitable for external use, direct burial and areas where sudden mechanical stress are expected. SWA Cable is one of our most popular cables from small projects in the garden for landscapers to large infrastructure projects.
Technical Information
Conductor Material:Copper, IEC60228
Conductor Shape:
1.Smm2 up to 16mm2Circular
25mm2 up to 400mm2 Sector-shaped
Conductor Flexibility：Stranded class 2
Insulation:XLPE (Cross-linked Polyethylene), IEC60502
Armour Type:Galvanized steel wires
Outer Sheath:PVC,IEC60502
Inner Sheath:PVC,IEC60502
Sheath Colour:Black
Rated Voltage Uo/U (Um):600/1000V, BS5467
Installation Temperature:
Minimum: 0°c Maximum: 60°C
Installation Type:Outdoor Direct burial
Operating Temperature:Maximum: 90°C
Short-circuit Maximum Conductor Temperature:250°C
Flame Retardant:IEC 60332-1
Bending Radius:
1.5mm2 up to 16mm2 = 6 x 0
25mm2 up to 400mm2 = 8 x 0
|
3 Core Cu/xlpe/swa/pvc Power Cable 0.6/1.0KV
|
|||
|
Cross section (mm2)
|
Stranding (mm)
|
Approx overall diameter(m)
|
Max. DC-resist conductor 20℃ (ohm/km)
|
|
3 x 1.5
|
7/0.53
|
12.17
|
12.1
|
|
3 x 2.5
|
7/0.67
|
13.55
|
7.41
|
|
3 x 4.0
|
7/0.85
|
14.68
|
4.61
|
|
3 x 6.0
|
7/1.04
|
15.87
|
3.08
|
|
3 x 10
|
7/1.35
|
18.63
|
1.83
|
|
3 x 16
|
7/1.70
|
20.78
|
1.15
|
|
3 x 25
|
7/2.14
|
24.9
|
0.727
|
|
3 x 35
|
7/2.52
|
27.8
|
0.524
|
|
3 x 50
|
19/1.78
|
28
|
0.387
|
|
3 x 70
|
19/2.14
|
32.2
|
0.268
|
|
3 x 95
|
19/2.52
|
37
|
0.193
|
|
3 x 120
|
37/2.03
|
40.2
|
0.153
|
|
3 x 150
|
37/2.25
|
45.3
|
0.124
|
|
3 x 185
|
37/2.52
|
49.5
|
0.0991
|
|
3 x 240
|
61/2.25
|
55.6
|
0.0754
|
|
3 x 300
|
61/2.52
|
59.6
|
0.0601
|
|
3 x 400
|
61/2.85
|
65.8
|
0.047
|
