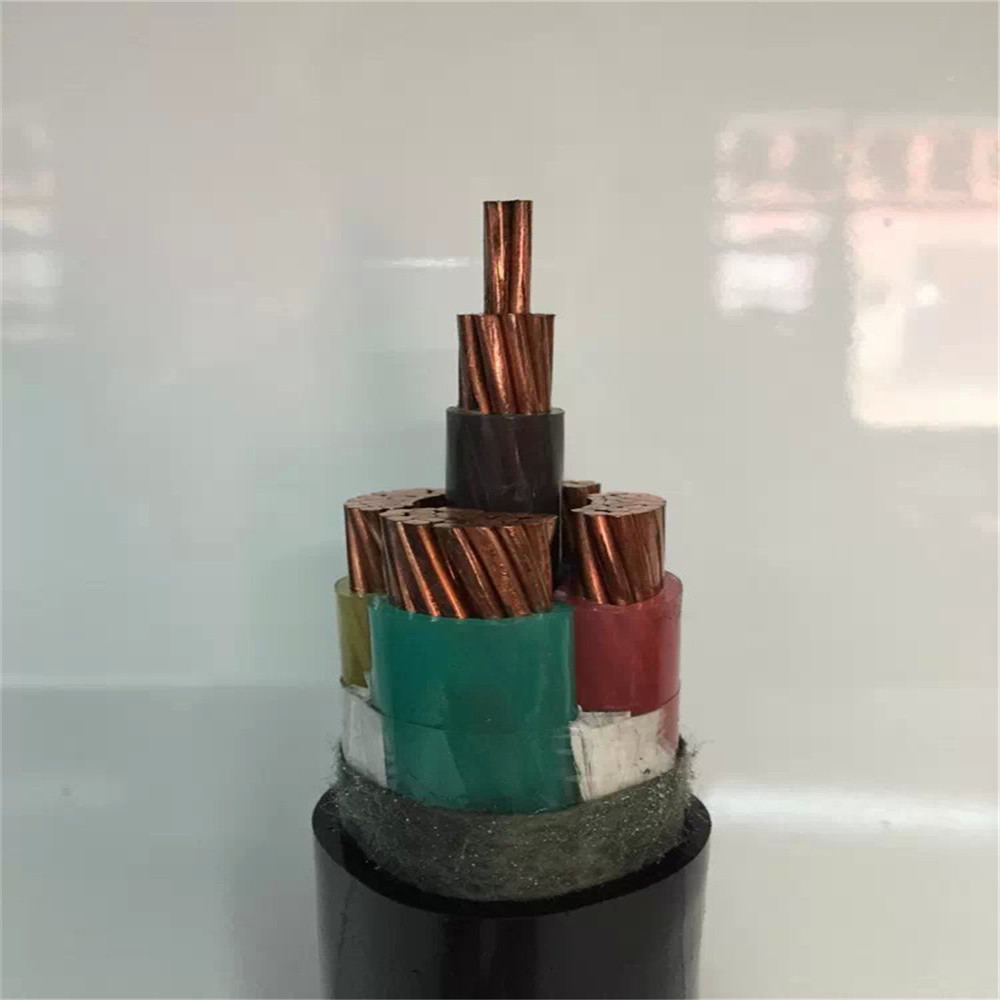

1-5 Cores Cu/XLPE/ PVC/ Low Voltage Power Cables
 |
Product Name:
1-5 Cores Cu/XLPE/ PVC/ Low Voltage Power Cables
Number :
 |
Product Description:
1-5 Cores Cu/XLPE/ PVC/ Low Voltage Power Cables
Applications:
1.This product is suitable for power lines that AC 50Hz, rated voltage 0.6 / 1kV (the maximum system voltage 1.2kV) for power transmission.
2.To be fixed in metallurgy, electricity, building etc., and To be fixed in cable channel, pipeline, direct burial and other occasions
as the requirements for fire-resistance and can withstand bigger mechanical force.
Features:
1.Widely source of raw materials with low cost, and easy for processing and manufacturing.
2.The product is made of cross-linked polyethylene insulation, compared with PVC insulated cables, it has the good insulation property,
the operating temperature of conductors can be up to 90 ºC.
|
Technical Parameters
|
|
|
Items
|
Description
|
|
Rated Voltage
|
Frequency AC rated voltage is 0.6 / 1kV. The maximum voltage of using AC system is no more than 1.2 kv
|
|
Operating Temperature
|
The long-term maxmium operating temperature of cable conductor is 70 ºC. When in short circuit, the maximum temperature is no more than 160 ºC,time of duration is no more than 5 S.
|
|
Environment Temperature
|
Minimum operating temperature temperature is -10 ºC.
|
|
Laying temperature
|
Once installed, the laying temperature should not be less than 0 ºC.
|
|
Bending radius
|
The bending radius of single-core cable is not more than20D, the bending radius of multi-cores cable is not more than 15D.
|
|
Storage
|
Finished cable should be stored at 0 ~ 40 ºC, humidity is below 85% of the environment, and avoid direct sunlight and the rain, keep ventilation and dry environment. According to the above requirements for storage and use, the cable can be used for more than 25 years long.
|
|
Installation Instruction
|
When installed, the environment temperature should not be lower than 0 ºC,if the environment temperature is lower 0 ºC, the cable should be preheated before installation, the bending radius should be controlled strictly, Single cable bending radius should be not less than 20D, multi-core cable bending radius should be not less than 15D. so as to avoid mechanical damage about internal cables (D is the cable diameter).
|
|
Type
|
Name
|
|||||||||
|
VV VLV
|
Copper(aluminum)Conductor,PVC insulated and Sheathed Power Cable
|
|||||||||
|
VV22 VLV22
|
Copper(aluminum)Conductor,PVC insulated,Steel-tape Armoured,PVC Sheathed Power Cable
|
|||||||||
|
VV23 VLV23
|
Copper(aluminum)Conductor,PVC insulated,Steel-tape Armoured,PVC Sheathed Power Cable
|
|||||||||
|
VV32 VLV32
|
Copper(aluminum)Conductor,PVC insulated,Fine Steel-wire Armoured,PVC Sheathed Power Cable
|
|||||||||
|
VV33 VLV33
|
Copper(aluminum)Conductor,PVC insulated,PE Sheathed Power Cable
|
|||||||||
|
VV42 VLV42
|
Copper(aluminum)Conductor,PVC insulated,Thick Steel-wire Armoured, PVC Sheathed Power Cable
|
|||||||||
|
VV43 VLV43
|
Copper(aluminum)Conductor,PVC insulated,Thick Steel-wire Armoured, PE Sheathed Power Cable
|
|||||||||
|
4 Cores XLPE Insulated SWA Armoured Power Cable 0.6/1kV
|
||||||||||
|
Spec (mm2）
|
Conductor Diameter(mm)
|
Insulation Thickness(mm)
|
Bedding Thickness(mm)
|
Armour Diameter(mm)
|
Sheath Thickness(mm)
|
OD(mm)
|
Weight Of Cable(kg/km)
|
|||
|
4x1.5
|
1.6
|
0.7
|
1
|
0.9
|
1.8
|
15
|
415
|
|||
|
4x2.5
|
2
|
0.7
|
1
|
0.9
|
1.8
|
17.5
|
490
|
|||
|
4x4
|
2.6
|
0.7
|
1
|
0.9
|
1.8
|
19
|
600
|
|||
|
4x6
|
3.1
|
0.7
|
1
|
0.9
|
1.8
|
20
|
730
|
|||
|
4x10
|
4
|
0.7
|
1
|
1.25
|
1.8
|
23
|
970
|
|||
|
4x16
|
5
|
0.7
|
1
|
1.6
|
1.8
|
26
|
1520
|
|||
|
4x25
|
6.3
|
0.9
|
1
|
1.6
|
1.8
|
29
|
2010
|
|||
|
4x35
|
7.4
|
0.9
|
1
|
1.6
|
1.9
|
31
|
2560
|
|||
|
4x50
|
8.8
|
1
|
1
|
1.6
|
2.1
|
36
|
3350
|
|||
|
4x70
|
10.6
|
1.1
|
1.2
|
2
|
2.2
|
40
|
4680
|
|||
|
4x95
|
12.4
|
1.1
|
1.2
|
2
|
2.4
|
44
|
5710
|
|||
|
4x120
|
14
|
1.2
|
1.4
|
2.5
|
2.5
|
50
|
7500
|
|||
|
4x150
|
15.5
|
1.4
|
1.4
|
2.5
|
2.6
|
55
|
9010
|
|||
|
4x185
|
17.4
|
1.6
|
1.4
|
2.5
|
2.8
|
61
|
10820
|
|||
|
4x240
|
20.3
|
1.7
|
1.6
|
2.5
|
3.1
|
69
|
13630
|
|||
|
4x300
|
22.7
|
1.8
|
1.6
|
2.5
|
3.2
|
75
|
16820
|
|||
|
4x400
|
25.4
|
2
|
1.8
|
3.15
|
3.4
|
83
|
|
|||
|
22230
|
