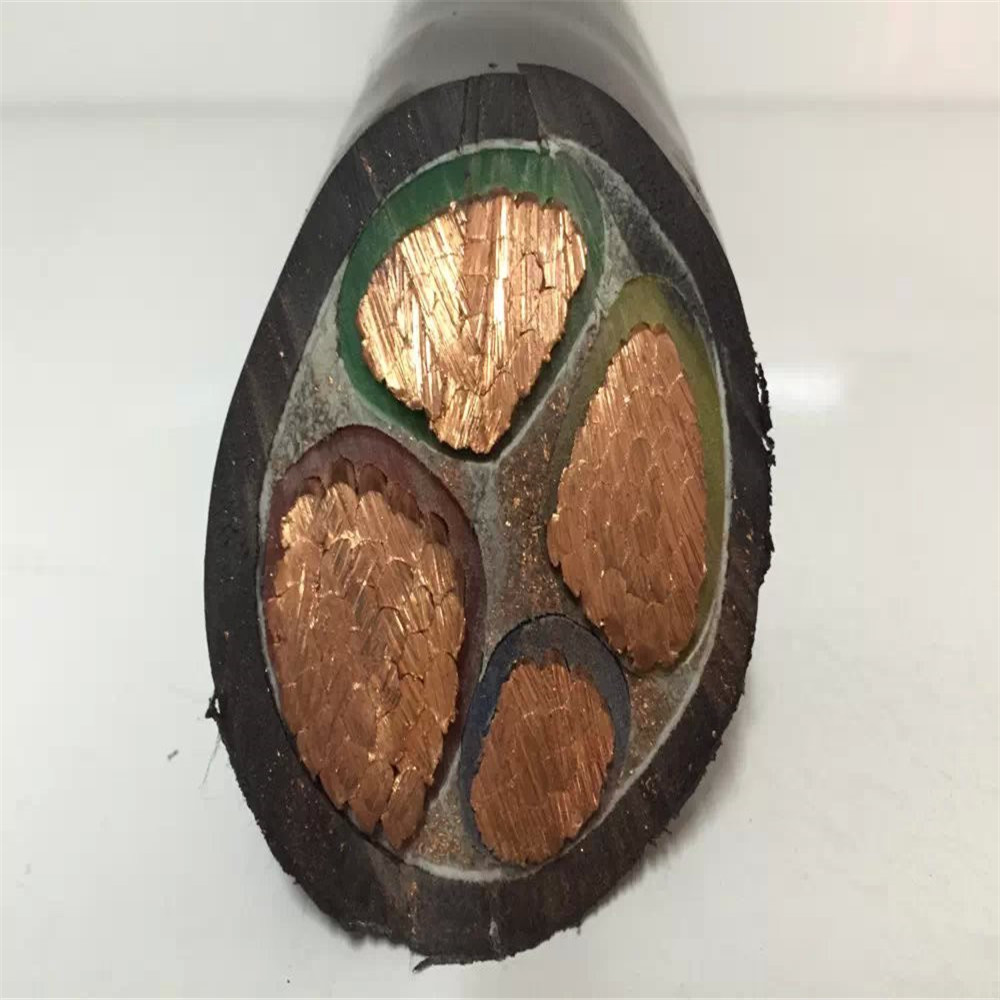

Low Voltage Copper Conductor PVC Insulated DC Electric Power Cable
 |
Product Name:
Low Voltage Copper Conductor PVC Insulated DC Electric Power Cable
Number :
 |
Product Description:
Low Voltage Copper Conductor PVC Insulated DC Electric Power Cable
Construction:
Conductor: copper,stranded
Insulation:PVC
Sheath:PVC
Rated voltage:0.6/1KV
Standard
The product is suitable for use in power distribution lines or fixed installations with rated power-frequency voltage up to and including 0.6/1KV.
Application:
For laying indoors, in tunnel or cable trench, unable to bear external mechanical forces, single core cable in magnetic duct is not permissible.
Operating characteristics:
1). Rated power-frequency voltage Uo/U: 0.6/1KV.
2). Max. permissible continuous operating temperature of conductor: 70°C
3). Max. short-circuit temperature of the conductor shall not exceed: (5S maximum duration) 160°C
4). The ambient temperature under installation should not below 0°C
5). The bending radius of a cable should not be less than 15 times of the cable diameter.
Cable Type:
Copper (aluminum) core, PVC insulated and sheathed power cables
Copper (aluminum) core, PVC insulated, PE sheathed power cables
Copper (aluminum) core, PVC insulated, steel tape armoring PVC sheathed power cables
Copper (aluminum) core, PVC insulated, steel tape armoring, PE sheathed power cables
Copper (aluminum) core, PVC insulated, steel wire armoring, PVC sheathed power cables
Copper (aluminum) core, PVC insulated, steel wire armoring, PE sheathed power cables |
Cu/XLPE/PVC/SWA/PVC SWA Armoured Power Cable0.6/1kV
|
||||
|
Cross section (mm2)
|
Stranding (mm)
|
Approx overall diameter(m)
|
Max. DC-resist conductor 20℃ (ohm/km)
|
Current rating laid direct (A)
|
|
4 x 1.5
|
7/0.53
|
12.88
|
12.1
|
32
|
|
4 x 2.5
|
7/0.67
|
14.43
|
7.41
|
42
|
|
4 x 4.0
|
7/0.85
|
16.87
|
4.61
|
55
|
|
4 x 6.0
|
7/1.04
|
17.87
|
3.08
|
69
|
|
4 x 10
|
7/1.35
|
20.1
|
1.83
|
92
|
|
4 x 16
|
7/1.70
|
22.4
|
1.15
|
119
|
|
4 x 25
|
7/2.14
|
27
|
0.727
|
152
|
|
4 x 35
|
7/2.52
|
30.1
|
0.524
|
182
|
|
4 x 50
|
19/1.78
|
31.5
|
0.387
|
217
|
|
4 x 70
|
19/2.14
|
37.4
|
0.268
|
266
|
|
4 x 95
|
19/2.52
|
40.9
|
0.193
|
319
|
|
4 x 120
|
37/2.03
|
46.6
|
0.153
|
363
|
|
4 x 150
|
37/2.25
|
50.2
|
0.124
|
406
|
|
4 x 185
|
37/2.52
|
55.8
|
0.0991
|
458
|
|
4 x 240
|
61/2.52
|
62.5
|
0.0754
|
529
|
|
4 x 300
|
61/2.85
|
67.4
|
0.0601
|
592
|
|
4 x 400
|
61/3.20
|
77
|
0.047
|
667
|
|
5 x 1.5
|
7/0.53
|
13.72
|
12.1
|
32
|
|
5 x 2.5
|
7/0.67
|
15.46
|
7.41
|
42
|
|
5 x 4.0
|
7/0.85
|
17.38
|
4.61
|
55
|
|
5 x 6.0
|
7/1.04
|
19.05
|
3.08
|
69
|
|
5 x 10
|
7/1.35
|
22.06
|
1.83
|
92
|
|
5 x 16
|
7/1.70
|
24.14
|
1.15
|
119
|
|
5 x 25
|
7/2.14
|
28.4
|
0.727
|
152
|
|
5 x 35
|
7/2.52
|
33
|
0.524
|
182
|
|
5 x 50
|
19/1.78
|
38
|
0.387
|
217
|
|
5 x 70
|
19/2.14
|
42.9
|
0.268
|
266
|
|
5 x 95
|
19/2.52
|
52.1
|
0.193
|
319
|
