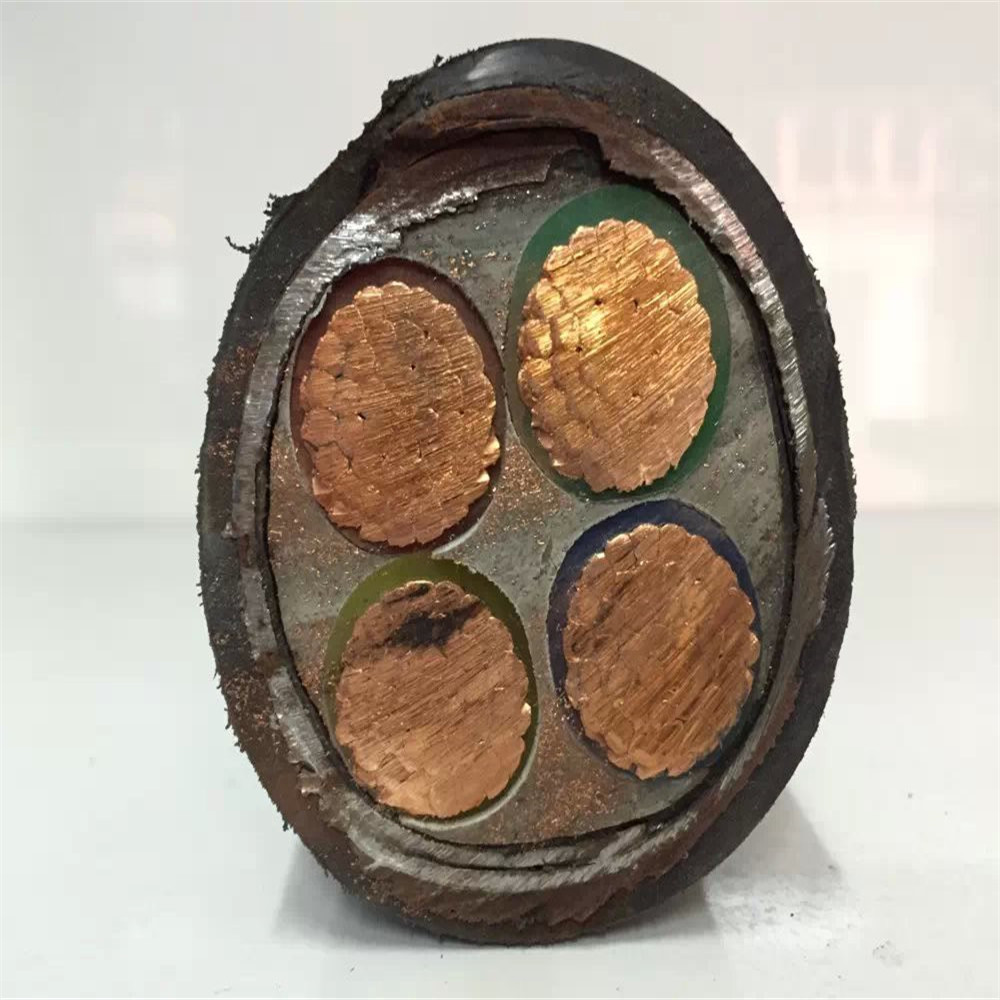

China supply low voltage copper conductor PVC insulation PVC sheath steel wire armored power cable
 |
Product Name:
China supply low voltage copper conductor PVC insulation PVC sheath steel wire armored power cable
Number :
 |
Product Description:
China supply low voltage copper conductor PVC insulation PVC sheath steel wire armored power cable
Applicantion:
The products can be produced and provided according to Chinese standard GB/T12706-2002(equivalent to IEC 60505).
The factory can also manufacture the products that are based on British Standard(BS) and other standards.
In addition,under the requirement of customers we can design and manufacture the products that have special performance.
The products are used in fixed laying on transmission and distribution electrical lines of 50 HZ AC rated voltage up to 6 kV.
Specific Property for Using
1.The long-time permissible working temperature of cable conductive core is not more than 70ºC.
2.During short circuit(max permanent time is not more than 5 seconds),the max temperature of cable conductor is not more than 165ºC.
3.The difference level of laying cable is not restricted.When laying the cable,ambient temperature is not lower than 0ºC.
4.They have good chemical stability,and properties of acid resistance,alkali resistance,salt resistance,oil resistance,solvent resistance and flame resistance.
5.Light weight,good bending property and easy installation and maintenance
