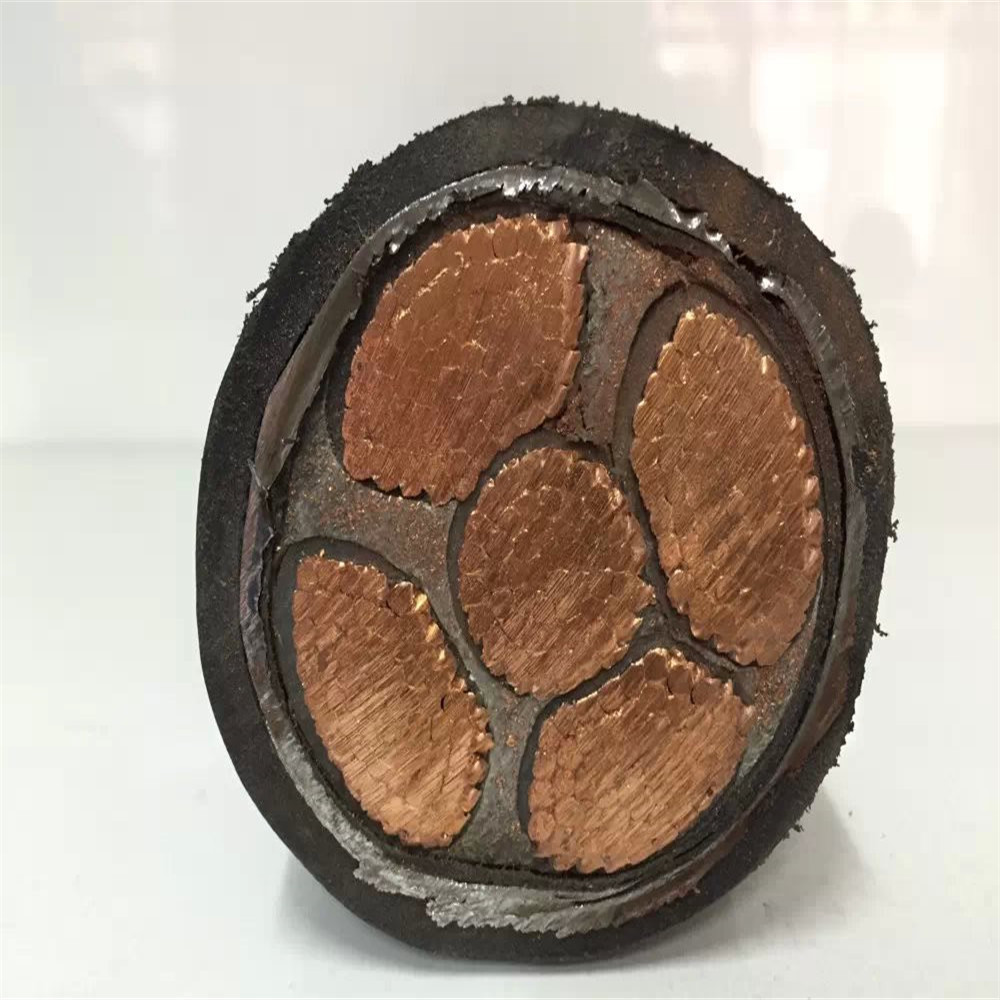

4+1core YJV CU/XLPE/PVC Electric Power Cable 0.6/1kV
 |
Product Name:
4+1core YJV CU/XLPE/PVC Electric Power Cable 0.6/1kV
Number :
 |
Product Description:
4+1core YJV CU/XLPE/PVC Electric Power Cable 0.6/1kV
Applications
For laying indoors and outdoors. Able to bear certain traction during installation, but not external mechanical forces. Laying single core cable in magnetic ducts is not allowed.
Standards
International: IEC 60502, IEC 60228, (IEC 60332-3 for ZR-YJV only)
China: GB/T 12706, (GB/T 18380-3 for ZR-YJV only)
Other standards such as BS, DIN and ICEA upon request
Constructions
Conductor : Compact stranded copper conductor, Cl.2 as per IEC 60228
Insulation : XLPE(cross-linked polyethylene) rated at 90ºC
Sheath : PVC or FR-PVC type ST2 to IEC 60502, black

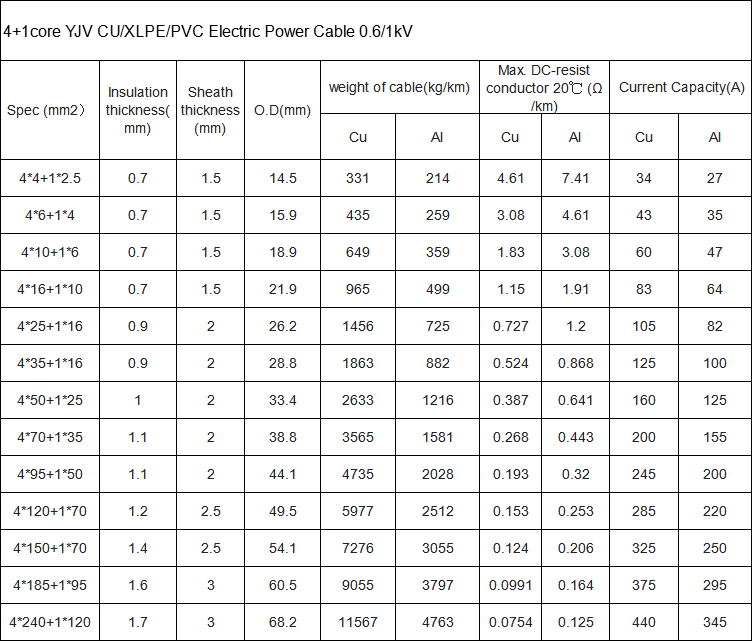

Technical data
Rated voltage: 0.6 / 1 kV
Maximum Conductor Temperature: under normal (90ºC), emergency (130ºC) or short circuit no more than 5 s (250ºC) conditions.
Min. Ambient Temp. 0ºC, after installation and only when cable is in a fixed position
Min. Bending Radius: 20 x cable O.D for single core
15 x cable O.D for multi core
|
Type
|
Name
|
|
VV VLV
|
Copper(aluminum)Conductor,PVC insulated and Sheathed Power Cable
|
|
VV22 VLV22
|
Copper(aluminum)Conductor,PVC insulated,Steel-tape Armoured,PVC Sheathed Power Cable
|
|
VV23 VLV23
|
Copper(aluminum)Conductor,PVC insulated,Steel-tape Armoured,PVC Sheathed Power Cable
|
|
VV32 VLV32
|
Copper(aluminum)Conductor,PVC insulated,Fine Steel-wire Armoured,PVC Sheathed Power Cable
|
|
VV33 VLV33
|
Copper(aluminum)Conductor,PVC insulated,PE Sheathed Power Cable
|
|
VV42 VLV42
|
Copper(aluminum)Conductor,PVC insulated,Thick Steel-wire Armoured, PVC Sheathed Power Cable
|
|
VV43 VLV43
|
Copper(aluminum)Conductor,PVC insulated,Thick Steel-wire Armoured, PE Sheathed Power Cable
|
