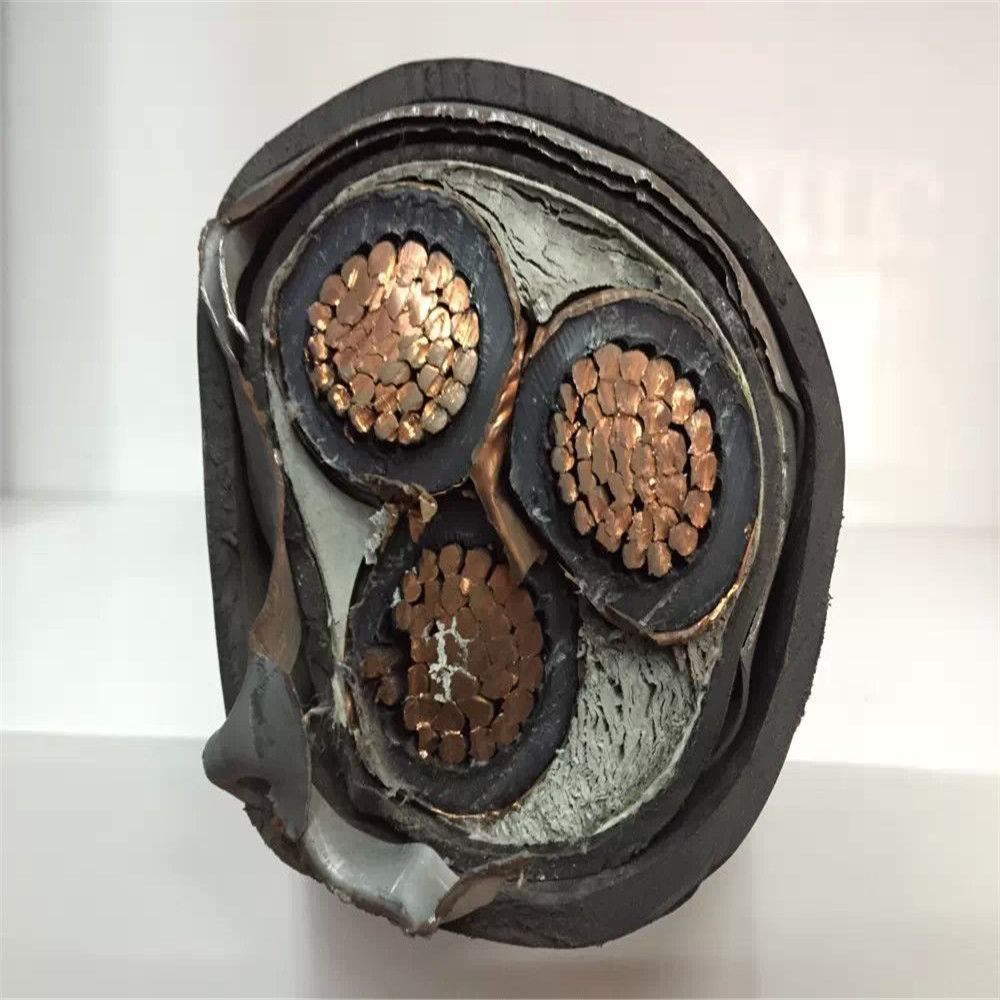

3.6/6kV Copper/XLPE/Steel tape armoured /PVC Power Cable
 |
Product Name:
3.6/6kV Copper/XLPE/Steel tape armoured /PVC Power Cable
Number :
 |
Product Description:
3.6/6kV Copper/XLPE/Steel tape armoured /PVC Power Cable
|
Technical Information
|
|
|
Conductor Material:
|
Copper, IEC60228
|
|
Conductor Shape:
|
50mm² up to 400mm² Circular
|
|
Conductor Flexibility:
|
Stranded class 2
|
|
Outer Sheath:
|
PVC, IEC60502
|
|
Inner Sheath:
|
PVC, IEC60502
|
|
Insulation:
|
XLPE (Cross-linked Polyethylene), IEC60502
|
|
Armour Type:
|
Aluminium wires
|
|
Colour:
|
Black
|
|
Rated Voltage Uo/U (Um):
|
600/1000V, BS5467
|
|
Installation Temperature:
|
Minimum: 0°C Maximum: 60°C
|
|
Installation Type:
|
Outdoor Direct burial
|
|
Operating Temperature:
|
Minimum: -15°C Maximum: 90°C
|
|
Short-circuit Maximum Conductor Temperature:
|
250°C
|
|
Flame Retardant:
|
IEC 60332-1 and BS EN 50265-2-1
|
|
Bending Radius:
|
50mm² up to 1000mm² = 6 x Ø
|
|
Spec for 3.6/6kV Copper/XLPE/Steel tape armoured /PVC Power Cable
|
||||||
|
Cable section
|
Nominal thickness insulation (mm)
|
Approx.thickness of copper tape screen(mm)
|
Nominal thickness of steel tape(mm)
|
Nominal thickness of sheath(mm)
|
Approx overall diameter(mm)
|
Max. DC-resist conductor 20℃ (Ω/km)
|
|
1x25mm2
|
2.5
|
0.12
|
0.3
|
1.8
|
22.1
|
0.727
|
|
1x35mm2
|
2.5
|
0.12
|
0.3
|
1.8
|
23.1
|
0.524
|
|
1x50mm2
|
2.5
|
0.12
|
0.3
|
1.8
|
24.2
|
0.387
|
|
1x70mm2
|
2.5
|
0.12
|
0.3
|
1.8
|
25.9
|
0.268
|
|
1x95mm2
|
2.5
|
0.12
|
0.3
|
1.8
|
27.5
|
0.193
|
|
1x120mm2
|
2.5
|
0.12
|
0.3
|
1.8
|
28.9
|
0.153
|
|
1x150mm2
|
2.5
|
0.12
|
0.3
|
1.9
|
30.7
|
0.124
|
|
1x185mm2
|
2.5
|
0.12
|
0.3
|
1.9
|
32.3
|
0.0991
|
|
1x240mm2
|
2.6
|
0.12
|
0.3
|
2
|
35.1
|
0.0754
|
|
1x300mm2
|
2.8
|
0.12
|
0.5
|
2.1
|
38.5
|
0.0601
|
|
1x400mm2
|
3
|
0.12
|
0.5
|
2.3
|
42.5
|
0.047
|
|
1x500mm2
|
3.2
|
0.12
|
0.5
|
2.4
|
47
|
0.0366
|
|
1x630mm2
|
3.2
|
0.12
|
0.5
|
2.5
|
51
|
0.0283
|
|
1x800mm2
|
3.2
|
0.12
|
0.5
|
2.6
|
55
|
0.0221
|
