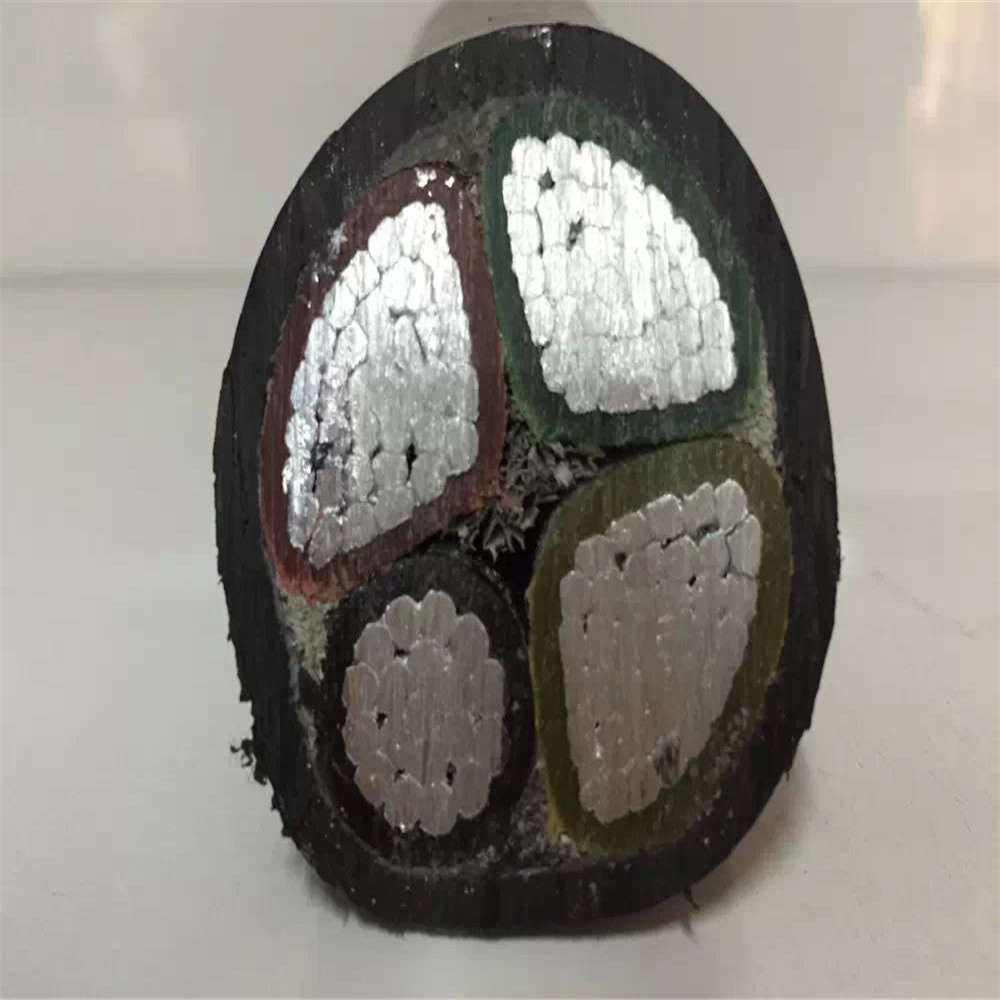

1kv Aluminum Cable, Armoured Cable PVC Power Cable

Product Name:

1kv Aluminum Cable, Armoured Cable PVC Power Cable

Number :

Product Description:

1kv Aluminum Cable, Armoured Cable PVC Power Cable

Application

The cable is used for fixed installations such as electric power distribution networks or industrial installations, which is laid indoors, in tunnel, in cable trench or in conduit, unable to bear external mechanical force.

Standards

IEC 60502-1,GB/T 12706-2008

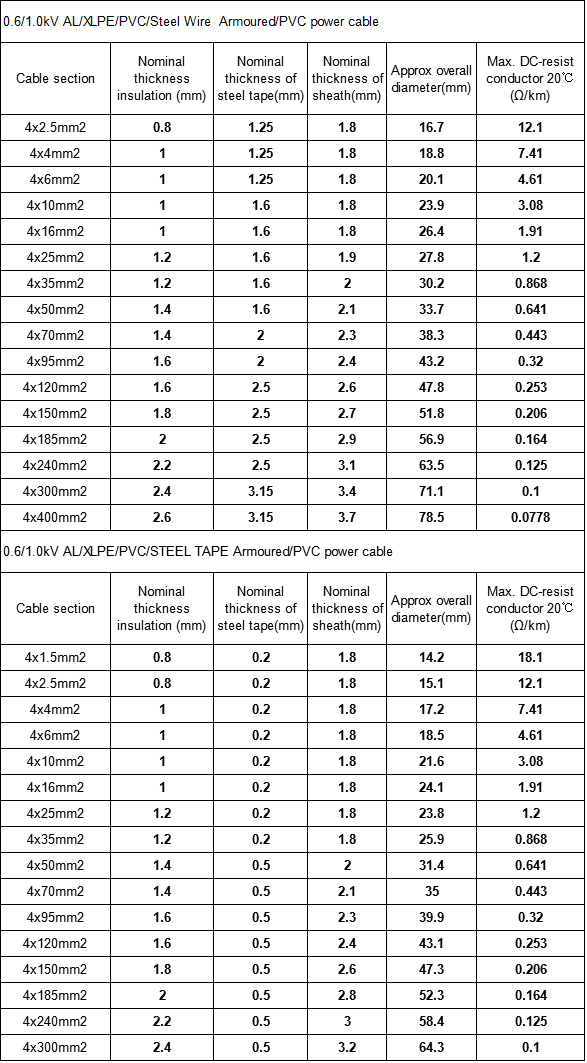

Description:

1.Rated voltage: 0.6/1.0kV

2.Conductor: Aluminum wire, Class 2

3.Insulation: PVC/XLPE

4.Sheath: PVC

5.Armourd type: Steel wire armourd Cable, or Steel tape armoured cable

6.Popular Size: Aluminum power cable 4x95mm

Operating Characteristics

Max. Permissible continuous operating temperature of conductor: 70℃

Max. Temperature of conductor during short-circuit (5s max. Duration) shall not exceed:

Nominal cross section of conductor ≤ 300mm2: 160℃;

Nominal cross section of conductor >300mm2: 140℃

The ambient temperature under installation should not be lower than: 0℃

The bending radius of cable is recommended as following:

For single core cable: Not less than 20 times of the diameter of cable

For multi-core cable: Not less than 15 times of the diameter of cable
