China Cable Supplier 0.6/1.0kV Copper/Aluminum XLPE insulation Underground Cable
 |
Product Name:
China Cable Supplier 0.6/1.0kV Copper/Aluminum XLPE insulation Underground Cable
Number :
 |
Product Description:
China Cable Supplier 0.6/1.0kV Copper/Aluminum XLPE insulation Underground Cable
Standard
This product is manufactured according to GB/T12706.1, equivalent to IEC60502.1. Or BS, DIN, ICEA standard as customer request.
Application
The product is suitable for power transmission and distribution lines with rated power frequency voltage up to and including 0.6/1KV.
Operating Performance
1) Rated power frequency voltage Uo/U: 0.6/1KV.
2)Max. Permissible continuous operating temperature of conductor: 90ºC
3)Max. Short-circuit temperature of the conductor shall not exceed: (5S maximum duration) 250ºC
4)The ambient temperature under installation should not below 0ºC
5)The bending radius of a cable should not be less than 15 times of the cable diameter.
6)The test voltage (A.C.): 3.5kV/5min.
7)The flame-retardant properties of cable comply with grade A, B, C of GB/T19666-2005 or IEC60332.

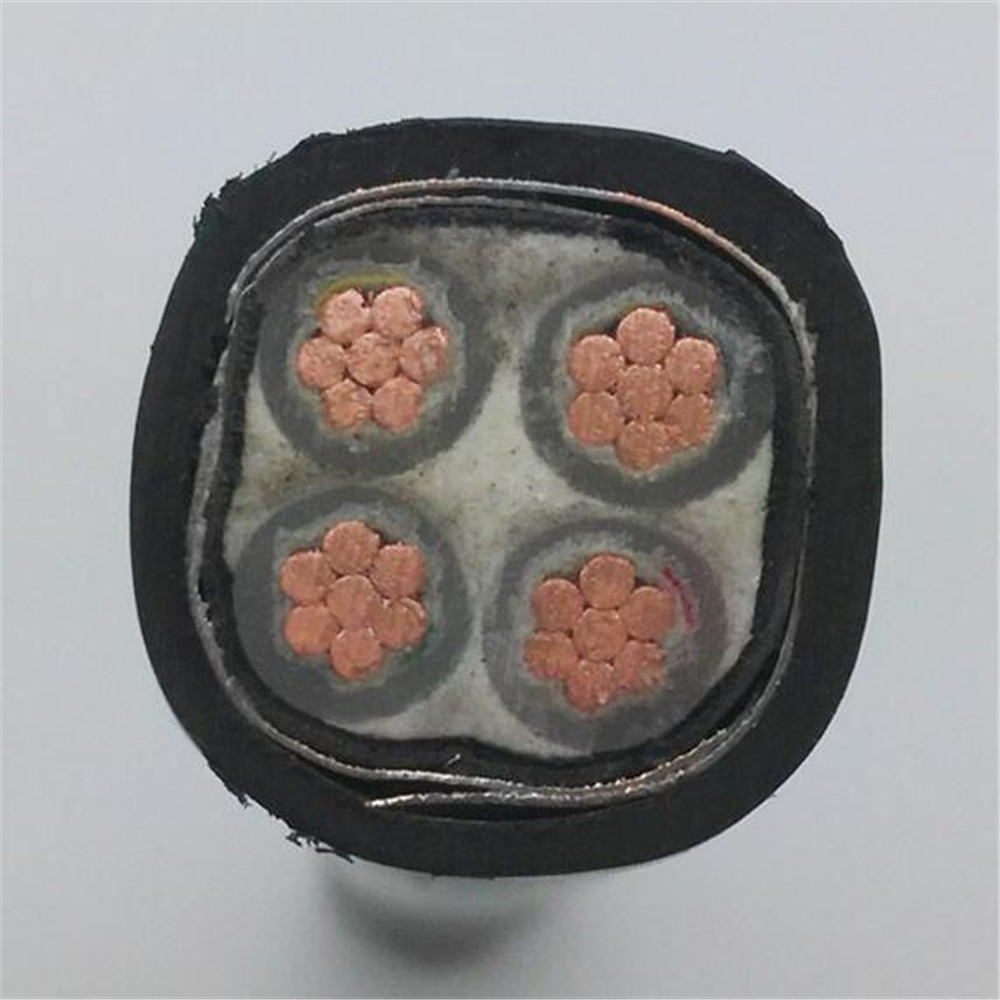

Construction:
Conductor: Solid or stranded copper,aluminum
Insulation: Cross-linked polyethylene( XLPE or PVC)
Circuit Identification: The insulation shall be red, black
Filler: Polypropylene lament with lapped binding tape
Inner Sheath: Polyvinyl chloride (Black)
Armor: Galvanized steel wire
Core-covering: Binding tape
Outer Sheath: Polyvinyl chloride (Black)
Package: Wooden Drum Package or Iron-wooden drum
|
Type
|
No. of cores
|
Nom. Cross-section of conductor
|
|
|
Copper conductor
|
Aluminum conductor
|
(mm2)
|
|
|
YJV YJY
|
-
|
1
|
1.5-800
|
|
-
|
YJLV YJLY
|
2.5-800
|
|
|
YJV22 YJV23
|
YJLV22 YJLY23
|
10-800
|
|
|
YJV YJY
|
-
|
2
|
1.5-300
|
|
-
|
YJLV YJLY
|
2.5-300
|
|
|
YJV22 YJV23
|
YJLV22 YJLY23
|
4.0-300
|
|
|
YJV32 YJV33
|
YJLV32 YJLY33
|
10-300
|
|
|
YJV YJY
|
-
|
3
|
1.5-400
|
|
-
|
YJLV YJLY
|
2.5-400
|
|
|
YJV22 YJV23
|
YJLV22 YJLY23
|
4.0-400
|
|
|
YJV32 YJV33
|
YJLV32 YJLY33
|
10-400
|
|
|
YJV YJY
|
-
|
4
|
1.5-400
|
|
-
|
YJLV YJLY
|
2.5-400
|
|
|
YJV22 YJV23
|
YJLV22 YJLY23
|
4.0-400
|
|
|
YJV32 YJV33
|
YJLV32 YJLY33
|
10-400
|
|
|
YJV YJY
|
-
|
3+1
|
1.5-400
|
|
-
|
YJLV YJLY
|
4.0-400
|
|
|
YJV22 YJV23
|
YJLV22 YJLY23
|
4. 0-400
|
|
|
YJV32 YJV33
|
YJLV32 YJLY33
|
10-400
|
|
|
YJV YJY
|
-
|
5
|
1.5-400
|
|
-
|
YJLV YJLY
|
2.5-400
|
|
|
YJV22 YJV23
|
YJLV22 YJLY23
|
4.0-400
|
|
|
YJV32 YJV33
|
YJLV32 YJLY33
|
10-400
|
|
|
YJV YJY
|
-
|
4+1
|
1.5-400
|
|
-
|
YJLV YJLY
|
4.0-400
|
|
|
YJV22 YJV23
|
YJLV22 YJLY23
|
4. 0-400
|
|
|
YJV32 YJV33
|
YJLV32 YJLY33
|
10-400
|
|
|
YJV YJY
|
-
|
3+2
|
1.5-400
|
|
-
|
YJLV YJLY
|
4.0-400
|
|
|
YJV22 YJV23
|
YJLV22 YJLY23
|
4. 0-400
|
|
|
YJV32 YJV33
|
YJLV32 YJLY33
|
10-400
|
|
|
The armoured single core cables are used for D.C. system only. As for A.C. system,non-magnetic armour material should be used, or a magnetic isolation should be applied.
|
|||
|
Type
|
Name
|
|
VV VLV
|
Copper(aluminum)Conductor,PVC insulated and Sheathed Power Cable
|
|
VV22 VLV22
|
Copper(aluminum)Conductor,PVC insulated,Steel-tape Armoured,PVC Sheathed Power Cable
|
|
VV23 VLV23
|
Copper(aluminum)Conductor,PVC insulated,Steel-tape Armoured,PVC Sheathed Power Cable
|
|
VV32 VLV32
|
Copper(aluminum)Conductor,PVC insulated,Fine Steel-wire Armoured,PVC Sheathed Power Cable
|
|
VV33 VLV33
|
Copper(aluminum)Conductor,PVC insulated,PE Sheathed Power Cable
|
|
VV42 VLV42
|
Copper(aluminum)Conductor,PVC insulated,Thick Steel-wire Armoured, PVC Sheathed Power Cable
|
|
VV43 VLV43
|
Copper(aluminum)Conductor,PVC insulated,Thick Steel-wire Armoured, PE Sheathed Power Cable
|
