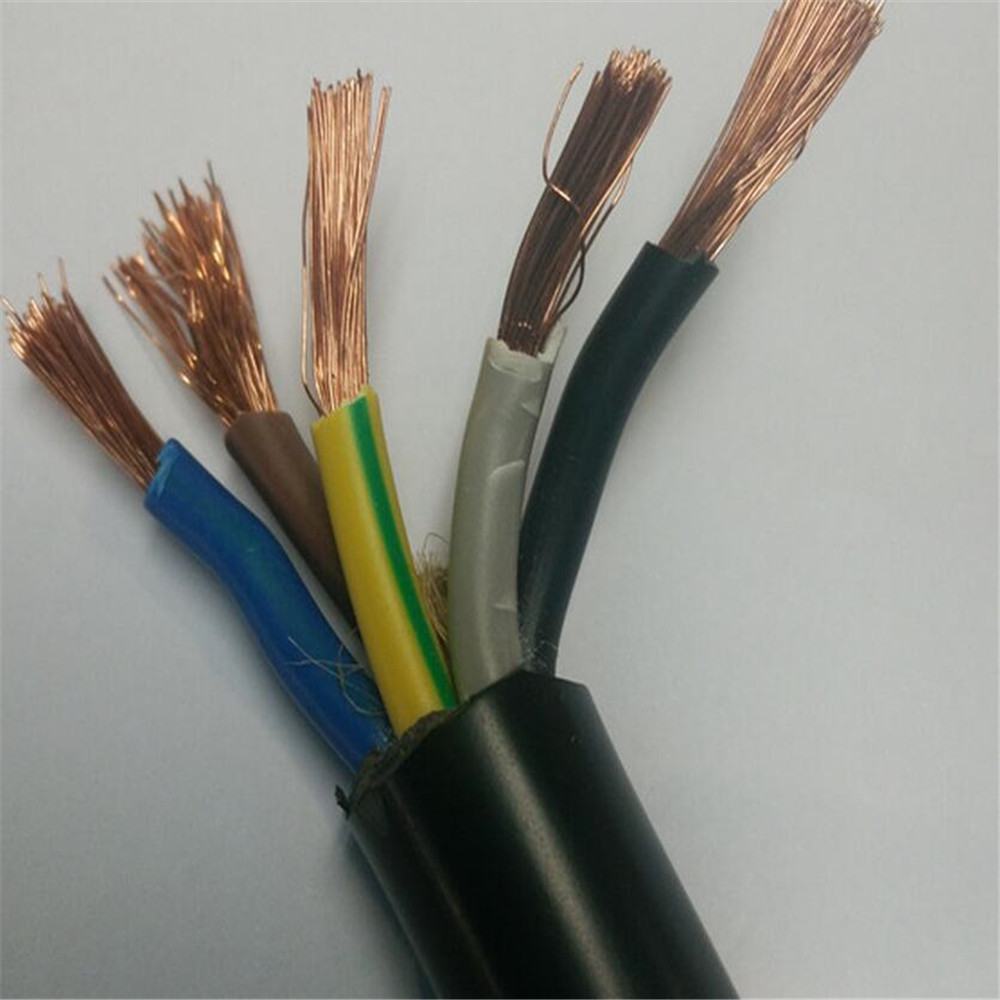

YC/YCW model Soft Rubber Sheath Electric Cable for General Use
 |
Product Name:
YC/YCW model Soft Rubber Sheath Electric Cable for General Use
Number :
 |
Product Description:
YC/YCW model Soft Rubber Sheath Electric Cable for General Use
Type,Description and Main Application
Application:
It is used for household electrical appliance, electrical tools and various mobile electrical equipments of AC rated voltage 450/750V or lower.
Executive standard: JB8735.2-1998
Working Condition
1:Rated voltage 300/500V for YZ type and 450/750V for YC type
2:Working temperature allowed by cable is no higher than 65C.
It is used for household electrical appliance, electrical tools and various mobile electrical equipments of AC rated voltage 450/750V or lower.
Executive standard: JB8735.2-1998
Working Condition
1:Rated voltage 300/500V for YZ type and 450/750V for YC type
2:Working temperature allowed by cable is no higher than 65C.
Type,Description and Main Application
|
Spec for rubber cable wire
|
|||||
|
Type
|
Name
|
||||
|
YQ
|
NR/SBR rubber insulated NR/SBR rubber sheathed flexible cables (wires) for light duty
|
||||
|
YQW
|
NR/SBR rubber insulated neoprene rubber sheathed flexible cables (wires) for light duty
|
||||
|
YZ
|
NR/SBR rubber insulated NR/SBR rubber sheathed flexible cables (wires) for middle duty
|
||||
|
YZW
|
NR/SBR rubber insulated neoprene rubber sheathed flexible cables (wires) for middle duty
|
||||
|
YC
|
NR/SBR rubber insulated NR/SBR rubber sheathed flexible cables (wires) for heavy duty
|
||||
|
YCW
|
NR/SBR rubber insulated neoprene rubber sheathed flexible cables (wires) for heavy duty
|
||||
|
YH
|
NR/SBR rubber sheathed arc welding cable
|
||||
|
YHF
|
Neoprene rubber sheathed arc welding cable
|
||||
|
Note: W means cable has the properties of weather and oil resistance, suitable for the places outdoors and contaminated by the oil.
|
|||||
|
Rubber Cable Specification Range:
|
|||||
|
Type
|
Rated Voltage
|
Core Number
|
Nominal Cross-section Area(mm2)
|
||
|
YQ,YQW
|
300/300
|
2.3
|
0.3~0.5
|
||
|
YZ,YZW
|
300/500
|
2.3.4.5.3+1
|
1.5~6
|
||
|
YC
|
450/750
|
1
|
1.5~240
|
||
|
2
|
1.5~95
|
||||
|
3
|
1.5~150
|
||||
|
4
|
1.5~25
|
||||
|
5
|
|
||||
|
|
|
|
|
||
|
450/750V YZW&YCW model Rubber Cable
|
||||||
|
Cable Model
|
Conductor Section-area (mm2)
|
Core No. /Dia. (No./mm)
|
Nominal thickness of insulation (mm)
|
Nominal thickness of sheath (mm)
|
Overall Diameter (mm)
|
Max. DC resistance at 20°C(Ω/km)
|
|
YZW
|
2× 0.75
|
24/0.20
|
0.6
|
0.8
|
6.3± 0.2
|
26.0
|
|
YZW
|
2× 1.0
|
32/0.20
|
0.6
|
0.8
|
6.7± 0.2
|
19.5
|
|
YZW
|
3× 0.75
|
24/0.20
|
0.6
|
0.9
|
6.8± 0.2
|
26.0
|
|
YZW
|
3× 1.0
|
32/0.20
|
0.6
|
0.9
|
7.2± 0.2
|
19.5
|
|
YCW
|
1× 1.5
|
30/0.25
|
0.8
|
1.4
|
6.2± 0.2
|
13.3
|
|
YCW
|
1× 2.5
|
49/0.25
|
0.9
|
1.4
|
6.6± 0.2
|
7.98
|
|
YCW
|
1× 4
|
56/0.30
|
1.0
|
1.5
|
7.9± 0.3
|
4.95
|
|
YCW
|
1× 6
|
84/0.30
|
1.0
|
1.6
|
8.7± 0.3
|
3.30
|
|
YCW
|
2× 1.0
|
32/0.20
|
0.8
|
1.3
|
8.3± 0.3
|
19.5
|
|
YCW
|
2× 1.5
|
30/0.25
|
0.8
|
1.5
|
9.3± 0.3
|
13.30
|
|
YCW
|
2× 2.5
|
49/0.25
|
0.9
|
1.7
|
11.2± 0.4
|
7.98
|
|
YCW
|
2× 4.0
|
56/0.30
|
1.0
|
1.8
|
12.8± 0.4
|
4.95
|
|
YCW
|
2× 6.0
|
84/0.30
|
1.0
|
2.0
|
14.4± 0.4
|
3.30
|
|
YCW
|
3× 1.0
|
32/0.20
|
0.8
|
1.4
|
9.0± 0.3
|
19.5
|
|
YCW
|
3× 1.5
|
30/0.25
|
0.8
|
1.6
|
10.1± 0.4
|
13.3
|
|
YCW
|
3× 2.5
|
49/0.25
|
0.9
|
1.8
|
12.1± 0.4
|
7.98
|
|
YCW
|
3× 4.0
|
56/0.30
|
1
|
1.9
|
13.9± 0.4
|
4.95
|
|
YCW
|
3× 6.0
|
84/0.30
|
1.0
|
2.1
|
15.4± 0.5
|
3.30
|
|
YCW
|
4× 1.0
|
32/0.20
|
0.8
|
1.5
|
10.0± 0.4
|
19.5
|
|
YCW
|
4× 1.5
|
30/0.25
|
0.8
|
1.7
|
11.1± 0.4
|
13.3
|
|
YCW
|
4× 2.5
|
49/0.25
|
1.0
|
1.9
|
13.3± 0.4
|
7.98
|
|
YCW
|
4× 4.0
|
56/0.30
|
1.0
|
2.0
|
15.2± 0.5
|
4.95
|
|
YCW
|
4× 6.0
|
84/0.30
|
0.6
|
2.3
|
17.2± 0.5
|
3.3
|
|
YCW
|
5× 1.0
|
32/0.20
|
0.6
|
1.6
|
1.0± 0.4
|
19.5
|
|
YCW
|
5× 1.5
|
30/0.25
|
0.8
|
1.8
|
12.2± 0.4
|
13.3
|
|
YCW
|
5× 2.5
|
49/0.25
|
0.9
|
2.0
|
14.6± 0.5
|
7.98
|
|
YCW
|
5× 4.0
|
56/0.30
|
1.0
|
2.2
|
16.9± 0.5
|
4.95
|
|
YCW
|
5× 6.0
|
84/0.30
|
1.0
|
2.5
|
19.1± 0.6
|
3.30
|
