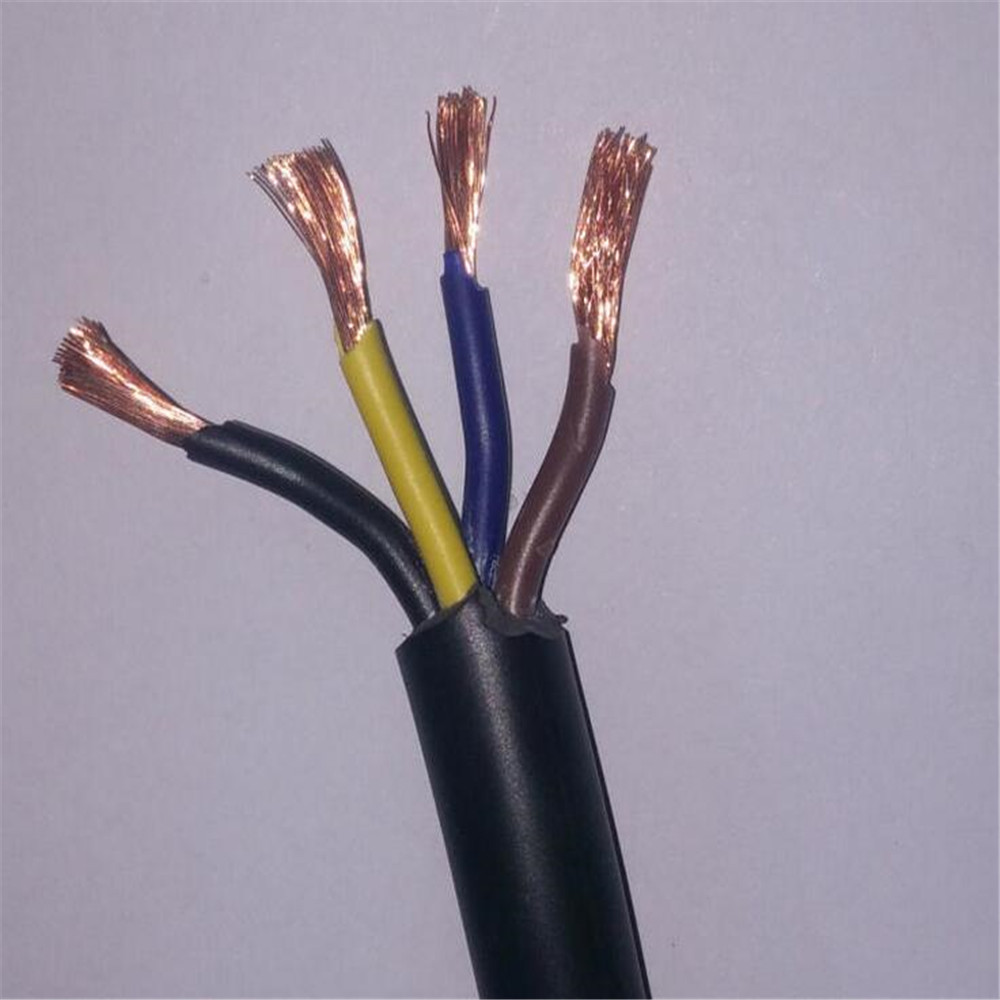

YZ/YZW model Rubber-Sheathed Flexible Cable(300/500V)
 |
Product Name:
YZ/YZW model Rubber-Sheathed Flexible Cable(300/500V)
Number :
 |
Product Description:
YZ/YZW model Rubber-Sheathed Flexible Cable(300/500V)
Working Conditions:
1.Rated voltage: 300/500(YZ type), 450V(YC type)
2.The long-term working temperature of conductor should be no longer than 65*C
3.W type cables have weather-proof character and certain grease-proof character and are suitable for outdoor usage and the occasion with greasy dirt.
Characteristics:
1.Rated power-frequency voltage U0/U: 450/750V, 300/500V and 300/300V.
2.Maximum permitted operating temperature of conductor is 60° C.
3.Permitted lowest working temperature is -35° C.
4.Cables can be used at places contaminated by mineral oil and fuel oil.
5.D>25mm
The minimum bending radius is over 6 times of cable diameter.
D≤ 25mm
The minimum bending radius is over 4 times of cable diameter.
YZ/YZW model Rubber-Sheathed Flexible Cable(300/500V)
|
Rubber Insulated and Rubber Sheathed Cable
|
||||
|
Conductor Section-area (mm2)
|
Nominal thickness of insulation (mm)
|
Nominal thickness of sheath(mm)
|
Overall Diameter (mm)
|
Max. DC resistance at 20°C(Ω/km)
|
|
1x1.5
|
0.8
|
5.9
|
50
|
13.3
|
|
1x2.5
|
0.9
|
6.5
|
65
|
7.98
|
|
1x4
|
1
|
7.4
|
89
|
4.95
|
|
1x6
|
1
|
8.1
|
115
|
3.3
|
|
1x10
|
1.2
|
10.4
|
190
|
1.91
|
|
1x16
|
1.2
|
11.6
|
259
|
1.21
|
|
1x25
|
1.4
|
13.7
|
375
|
0.78
|
|
1x35
|
1.4
|
15.4
|
492
|
0.554
|
|
1x50
|
1.6
|
17.7
|
675
|
0.386
|
|
1x70
|
1.6
|
20
|
908
|
0.272
|
|
1x95
|
1.8
|
22.1
|
1171
|
0.206
|
|
1x120
|
1.8
|
24.5
|
1445
|
0.161
|
|
1x150
|
2
|
26.9
|
1783
|
0.129
|
|
1x185
|
2.2
|
28.9
|
2125
|
0.106
|
|
1x240
|
2.4
|
32.6
|
2733
|
0.0801
|
|
1x300
|
2.6
|
36.5
|
3348
|
0.0641
|
|
1x400
|
2.8
|
40.4
|
4293
|
0.0486
|
|
1x500
|
3
|
42.6
|
5262
|
0.0384
|
|
1x630
|
3
|
47.2
|
6790
|
0.0287
|
FEATURES & PROPERTIES:
Designed for heavy duty use.
Cur, tear & abrasion resistant.
Exceptional long term performance.
Excellent resistant to oils, acids, chemicals, ozone & solvents.
Excellent Impact Resistant.
Excellent Weather Resistant.
Performs & Looks like Vulcanize Rubber.
Excellent Electrical Properties.
Cur, tear & abrasion resistant.
Exceptional long term performance.
Excellent resistant to oils, acids, chemicals, ozone & solvents.
Excellent Impact Resistant.
Excellent Weather Resistant.
Performs & Looks like Vulcanize Rubber.
Excellent Electrical Properties.
