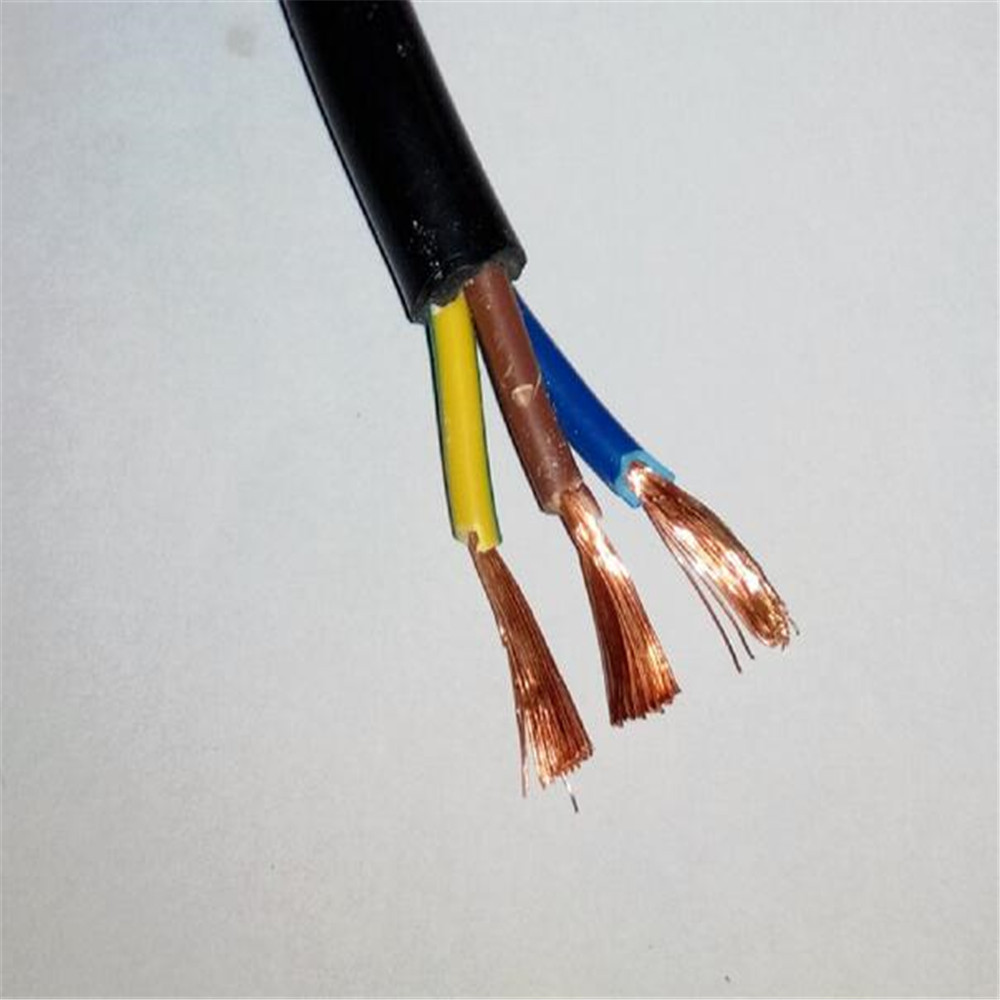

H05RR-F - Lightweight rubber sheathed cable
 |
Product Name:
H05RR-F - Lightweight rubber sheathed cable
Number :
 |
Product Description:
H05RR-F - Lightweight rubber sheathed cable.
Lightweight and flexible cable for light mechanical stress. Used in a variety of handheld household items such as office and kitchen appliances. Dry and damp rooms and only temporary use outdoors. Not for industrial/commercial or agricultural usage.
2.Product description
1)Type: H05RR-F
2)Rated voltage: 300/500V
3)Insulation material: EPR/EPDM
4)Jacket material: CPE
5)Executive standard: VDE0282
6)Color
2 cores: Blue and Brown
3 cores: Yellow/Green, Blue and Brown
|
Spec for rubber cable wire
|
|
|
Type
|
Name
|
|
YQ
|
NR/SBR rubber insulated NR/SBR rubber sheathed flexible cables (wires) for light duty
|
|
YQW
|
NR/SBR rubber insulated neoprene rubber sheathed flexible cables (wires) for light duty
|
|
YZ
|
NR/SBR rubber insulated NR/SBR rubber sheathed flexible cables (wires) for middle duty
|
|
YZW
|
NR/SBR rubber insulated neoprene rubber sheathed flexible cables (wires) for middle duty
|
|
YC
|
NR/SBR rubber insulated NR/SBR rubber sheathed flexible cables (wires) for heavy duty
|
|
YCW
|
NR/SBR rubber insulated neoprene rubber sheathed flexible cables (wires) for heavy duty
|
|
YH
|
NR/SBR rubber sheathed arc welding cable
|
|
YHF
|
Neoprene rubber sheathed arc welding cable
|
|
Note: W means cable has the properties of weather and oil resistance, suitable for the places outdoors and contaminated by the oil.
|
|
|
Rubber Cable Specification Range:
|
|||
|
Type
|
Rated Voltage
|
Core Number
|
Nominal Cross-section Area(mm2)
|
|
YQ,YQW
|
300/300
|
2.3
|
0.3~0.5
|
|
YZ,YZW
|
300/500
|
2.3.4.5.3+1
|
1.5~6
|
|
YC
|
450/750
|
1
|
1.5~240
|
|
2
|
1.5~95
|
||
|
3
|
1.5~150
|
||
|
4
|
1.5~25
|
||
|
5
|
|||
