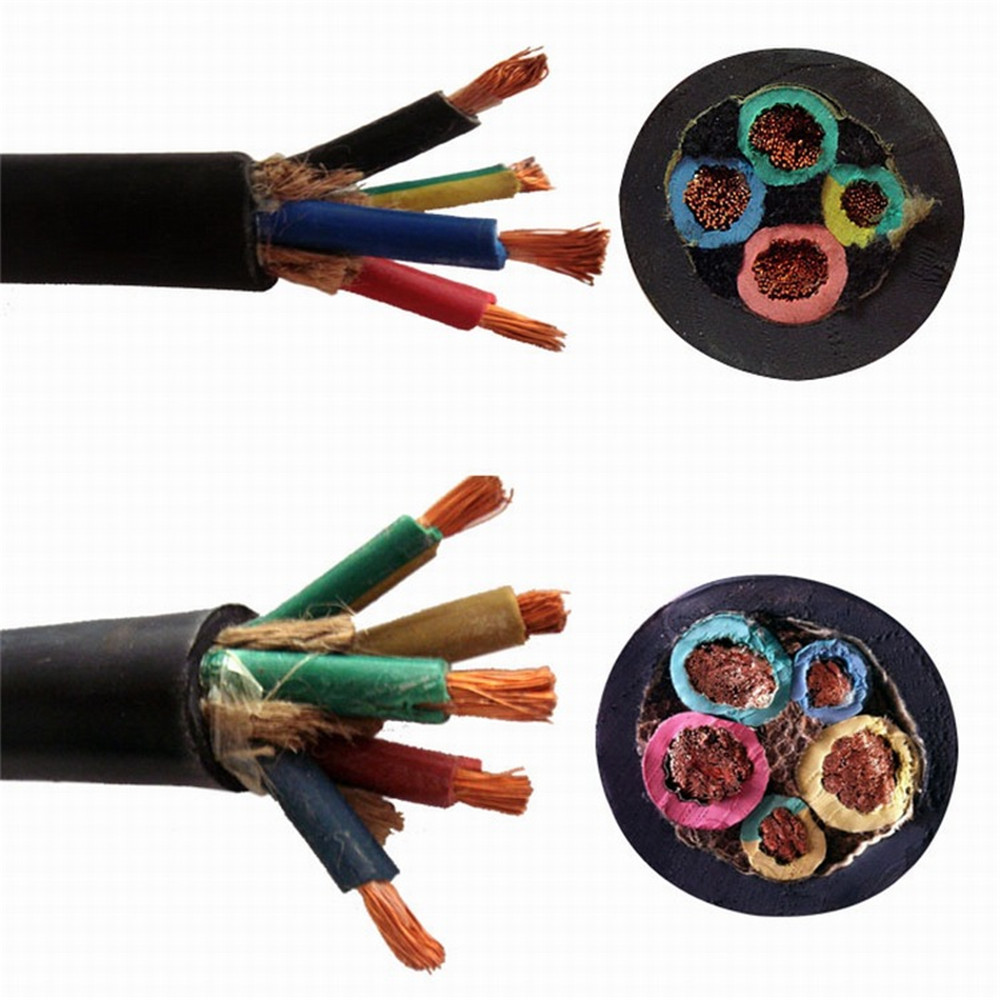

Hot Selling Rubber Insulated Flexible Cable
 |
Product Name:
Hot Selling Rubber Insulated Flexible Cable
Number :
 |
Product Description:
Hot Selling Rubber Insulated Flexible Cable
1.Working Conditions:
1.Rated voltage: 300/500(YZ type), 450V(YC type)
2.The long-term working temperature of conductor should be no longer than 65*C
3.W type cables have weather-proof character and certain grease-proof character and are suitable for outdoor usage and the occasion with greasy dirt.
2.Characteristics:
1.Rated power-frequency voltage U0/U: 450/750V, 300/500V and 300/300V.
2.Maximum permitted operating temperature of conductor is 60° C.
3.Permitted lowest working temperature is -35° C.
4.Cables can be used at places contaminated by mineral oil and fuel oil.
5.D>25mm
The minimum bending radius is over 6 times of cable diameter.
D≤ 25mm
The minimum bending radius is over 4 times of cable diameter.
(D-Diameter of the cable)
|
450/750V YZW&YCW model Rubber Cable
|
||||||
|
Cable Model
|
Conductor Section-area (mm2)
|
Core No. /Dia. (No./mm)
|
Nominal thickness of insulation (mm)
|
Nominal thickness of sheath (mm)
|
Overall Diameter (mm)
|
Max. DC resistance at 20°C(Ω/km)
|
|
YZW
|
2× 0.75
|
24/0.20
|
0.6
|
0.8
|
6.3± 0.2
|
26.0
|
|
YZW
|
2× 1.0
|
32/0.20
|
0.6
|
0.8
|
6.7± 0.2
|
19.5
|
|
YZW
|
3× 0.75
|
24/0.20
|
0.6
|
0.9
|
6.8± 0.2
|
26.0
|
|
YZW
|
3× 1.0
|
32/0.20
|
0.6
|
0.9
|
7.2± 0.2
|
19.5
|
|
YCW
|
1× 1.5
|
30/0.25
|
0.8
|
1.4
|
6.2± 0.2
|
13.3
|
|
YCW
|
1× 2.5
|
49/0.25
|
0.9
|
1.4
|
6.6± 0.2
|
7.98
|
|
YCW
|
1× 4
|
56/0.30
|
1.0
|
1.5
|
7.9± 0.3
|
4.95
|
|
YCW
|
1× 6
|
84/0.30
|
1.0
|
1.6
|
8.7± 0.3
|
3.30
|
|
YCW
|
2× 1.0
|
32/0.20
|
0.8
|
1.3
|
8.3± 0.3
|
19.5
|
|
YCW
|
2× 1.5
|
30/0.25
|
0.8
|
1.5
|
9.3± 0.3
|
13.30
|
|
YCW
|
2× 2.5
|
49/0.25
|
0.9
|
1.7
|
11.2± 0.4
|
7.98
|
|
YCW
|
2× 4.0
|
56/0.30
|
1.0
|
1.8
|
12.8± 0.4
|
4.95
|
|
YCW
|
2× 6.0
|
84/0.30
|
1.0
|
2.0
|
14.4± 0.4
|
3.30
|
|
YCW
|
3× 1.0
|
32/0.20
|
0.8
|
1.4
|
9.0± 0.3
|
19.5
|
|
YCW
|
3× 1.5
|
30/0.25
|
0.8
|
1.6
|
10.1± 0.4
|
13.3
|
|
YCW
|
3× 2.5
|
49/0.25
|
0.9
|
1.8
|
12.1± 0.4
|
7.98
|
|
YCW
|
3× 4.0
|
56/0.30
|
1
|
1.9
|
13.9± 0.4
|
4.95
|
|
YCW
|
3× 6.0
|
84/0.30
|
1.0
|
2.1
|
15.4± 0.5
|
3.30
|
|
YCW
|
4× 1.0
|
32/0.20
|
0.8
|
1.5
|
10.0± 0.4
|
19.5
|
|
YCW
|
4× 1.5
|
30/0.25
|
0.8
|
1.7
|
11.1± 0.4
|
13.3
|
|
YCW
|
4× 2.5
|
49/0.25
|
1.0
|
1.9
|
13.3± 0.4
|
7.98
|
|
YCW
|
4× 4.0
|
56/0.30
|
1.0
|
2.0
|
15.2± 0.5
|
4.95
|
|
YCW
|
4× 6.0
|
84/0.30
|
0.6
|
2.3
|
17.2± 0.5
|
3.3
|
|
YCW
|
5× 1.0
|
32/0.20
|
0.6
|
1.6
|
1.0± 0.4
|
19.5
|
|
YCW
|
5× 1.5
|
30/0.25
|
0.8
|
1.8
|
12.2± 0.4
|
13.3
|
|
YCW
|
5× 2.5
|
49/0.25
|
0.9
|
2.0
|
14.6± 0.5
|
7.98
|
|
YCW
|
5× 4.0
|
56/0.30
|
1.0
|
2.2
|
16.9± 0.5
|
4.95
|
|
YCW
|
5× 6.0
|
84/0.30
|
1.0
|
2.5
|
19.1± 0.6
|
|
|
3.30
|
