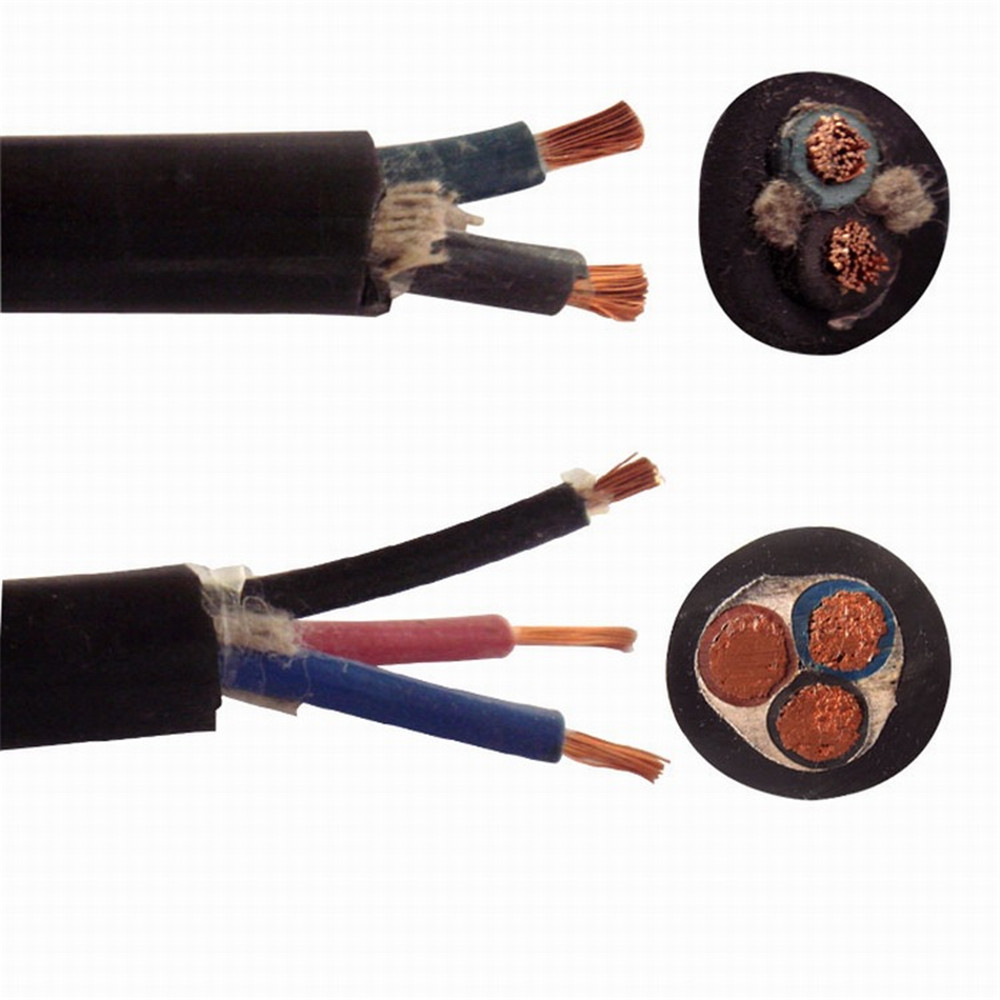

Electric Flexible Rubber Cable (H07RN-F)
 |
Product Name:
Electric Flexible Rubber Cable (H07RN-F)
Number :
 |
Product Description:
Electric Flexible Rubber Cable (H07RN-F)
Working temperature
H07RN-F model rated voltage U0/U IS 450/750V
H05RN-F model rated voltage U0/U IS 300/500V
H05RR-F model rated voltage U0/U IS 300/500V
Long time allow working temperature of wire core cant be higher than 60
Rubber copper wire Working Conditions
1.Rated voltage :300/500(h05rn-f type),450/750V(h07rn-f type)
2.The long-term working temperature of conductor should be no longer than 65°C
3.W type cables have weather-proof character and certain grease-proof character and are suitable for outdoor usage and the occasion with greasy dirt.
4. ZR type cables have fire-retardant character.
Characteristics
1. Rated power-frequency voltage U0/U: 450/750V, 300/500V and 200/200V.
2. Maximum permitted operating temperature of conductor is 60°C.
3. Permitted lowest working temperature is -35°C.
4. Cables can be used at places contaminated by mineral oil and fuel oil.
|
Electric Flexible Rubber Cable (H07RN-F)
|
||||||
|
Cable Model
|
Conductor Section-area (mm2)
|
Core No. /Dia. (No./mm)
|
Nominal thickness of insulation (mm)
|
Nominal thickness of sheath (mm)
|
Overall Diameter (mm)
|
Max. DC resistance at 20°C(Ω/km)
|
|
H07RN-F
|
1× 1.5mm²
|
30/0.25
|
0.8
|
1.4
|
6.2± 0.2
|
13.3
|
|
H07RN-F
|
1× 2.5mm²
|
49/0.25
|
0.9
|
1.4
|
6.6± 0.2
|
7.98
|
|
H07RN-F
|
1× 4mm²
|
56/0.30
|
1.0
|
1.5
|
7.9± 0.3
|
4.95
|
|
H07RN-F
|
1× 6mm²
|
84/0.30
|
1.0
|
1.6
|
8.7± 0.3
|
3.30
|
|
H07RN-F
|
2× 1.0mm²
|
32/0.20
|
0.8
|
1.3
|
8.3± 0.3
|
19.5
|
|
H07RN-F
|
2× 1.5mm²
|
30/0.25
|
0.8
|
1.5
|
9.3± 0.3
|
13.30
|
|
H07RN-F
|
2× 2.5mm²
|
49/0.25
|
0.9
|
1.7
|
11.2± 0.4
|
7.98
|
|
H07RN-F
|
2× 4.0mm²
|
56/0.30
|
1.0
|
1.8
|
12.8± 0.4
|
4.95
|
|
H07RN-F
|
2× 6.0mm²
|
84/0.30
|
1.0
|
2.0
|
14.4± 0.4
|
3.30
|
|
H07RN-F
|
3× 1.0mm²
|
32/0.20
|
0.8
|
1.4
|
9.0± 0.3
|
19.5
|
|
H07RN-F
|
3× 1.5mm²
|
30/0.25
|
0.8
|
1.6
|
10.1± 0.4
|
13.3
|
|
H07RN-F
|
3× 2.5mm²
|
49/0.25
|
0.9
|
1.8
|
12.1± 0.4
|
7.98
|
|
H07RN-F
|
3× 4.0mm²
|
56/0.30
|
1
|
1.9
|
13.9± 0.4
|
4.95
|
|
H07RN-F
|
3× 6.0mm²
|
84/0.30
|
1.0
|
2.1
|
15.4± 0.5
|
3.30
|
|
H07RN-F
|
4× 1.0mm²
|
32/0.20
|
0.8
|
1.5
|
10.0± 0.4
|
19.5
|
|
H07RN-F
|
4× 1.5mm²
|
30/0.25
|
0.8
|
1.7
|
11.1± 0.4
|
13.3
|
|
H07RN-F
|
4× 2.5mm²
|
49/0.25
|
1.0
|
1.9
|
13.3± 0.4
|
7.98
|
|
H07RN-F
|
4× 4.0mm²
|
56/0.30
|
1.0
|
2.0
|
15.2± 0.5
|
4.95
|
|
H07RN-F
|
4× 6.0mm²
|
84/0.30
|
0.6
|
2.3
|
17.2± 0.5
|
3.3
|
|
H07RN-F
|
5× 1.0mm²
|
32/0.20
|
0.6
|
1.6
|
1.0± 0.4
|
19.5
|
|
H07RN-F
|
5× 1.5mm²
|
30/0.25
|
0.8
|
1.8
|
12.2± 0.4
|
13.3
|
|
H07RN-F
|
5× 2.5mm²
|
49/0.25
|
0.9
|
2.0
|
14.6± 0.5
|
7.98
|
|
H07RN-F
|
5× 4.0mm²
|
56/0.30
|
1.0
|
2.2
|
16.9± 0.5
|
4.95
|
|
H07RN-F
|
5× 6.0mm²
|
84/0.30
|
1.0
|
2.5
|
19.1± 0.6
|
3.30
|
