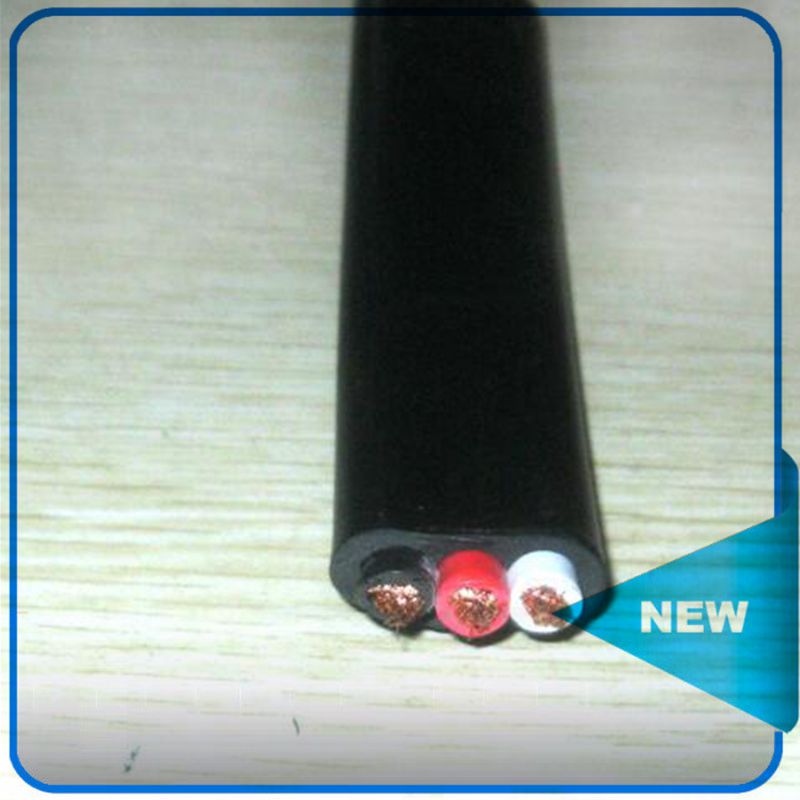

Rubber 3 Core Flat submersible pumps Cables
 |
Product Name:
Rubber 3 Core Flat submersible pumps Cables
Number :
 |
Product Description:
Rubber 3 Core Flat submersible pumps Cables
FEATURES & PROPERTIES :
Meets the requirement of CENELEC HD 22.1.S2, DIN VDE 0282 PART 810, IEC 245, CEI 20-19 & BS 6007, BS 6899.
Designed for heavy duty use.
Cur, tear & abrasion resistant.
Exceptional long term performance.
Excellent resistant to oils, chemicals,ozone & solvents.
Excellent Impact Resistant.
Excellent Weather Resistant.
Performs & Looks like Vulcanize Rubber.
Excellent Electrical Properties.
APPLICATION :
For continuous use in deep well to supply power to submersible pumps down to depths of 500 mtrs.
CONSTRUCTION :
Conductor : Finely stranded bare copper flexible conductor.
Insulation : Oil & water resistant thermoplastic rubber,
Sheath : Black heavy duty thermoplastic rubber.
Core Colours :
3core: Red ,Yellow and Blue.
3core: Black,Light Blue and Brown
Rubber 3 Core Flat submersible pumps Cables
|
3CORE FLAT CABLES FOR SUBMERSIBLE PUMPS (1100 VOLTS)
|
|||||||
|
Conductor
|
Insulation
|
Sheath
|
Current Rating at 40℃
|
||||
|
Nominal Area
|
No. & Dia. of wire
|
Nominal Thickness
|
Nominal Core Dia.
|
Nominal Thickness
|
Approx. Overall Dimensions
|
||
|
Thickness
|
Width
|
||||||
|
mm2
|
No./mm
|
mm
|
mm
|
mm
|
mm
|
mm
|
Amps.
|
|
1.5
|
22/0.30
|
0.8
|
3.25
|
1.15
|
6
|
12.8
|
14
|
|
2.5
|
36/0.30
|
0.9
|
3.84
|
1.15
|
6.4
|
14.6
|
18
|
|
4
|
56/0.30
|
1
|
4.5
|
1.15
|
7.4
|
16.8
|
26
|
|
6
|
85/0.30
|
1
|
5.3
|
1.15
|
7.9
|
18.7
|
31
|
|
10
|
140/0.30
|
1
|
6.5
|
1.4
|
9.9
|
23.7
|
42
|
|
16
|
226/0.30
|
1
|
8
|
1.4
|
11.4
|
28
|
57
|
|
25
|
354/0.30
|
1.2
|
10.1
|
2
|
14.7
|
35.5
|
72
|
|
35
|
495/0.30
|
1.2
|
11.3
|
2
|
16.2
|
39.5
|
90
|
|
50
|
703/0.30
|
1.4
|
13.6
|
2.2
|
18.3
|
45.5
|
115
|
|
70
|
440/0.45
|
1.4
|
15.3
|
2.2
|
20
|
51
|
143
|
|
95
|
475/0.50
|
1.6
|
18
|
2.4
|
23.5
|
60
|
|
|
165
|
