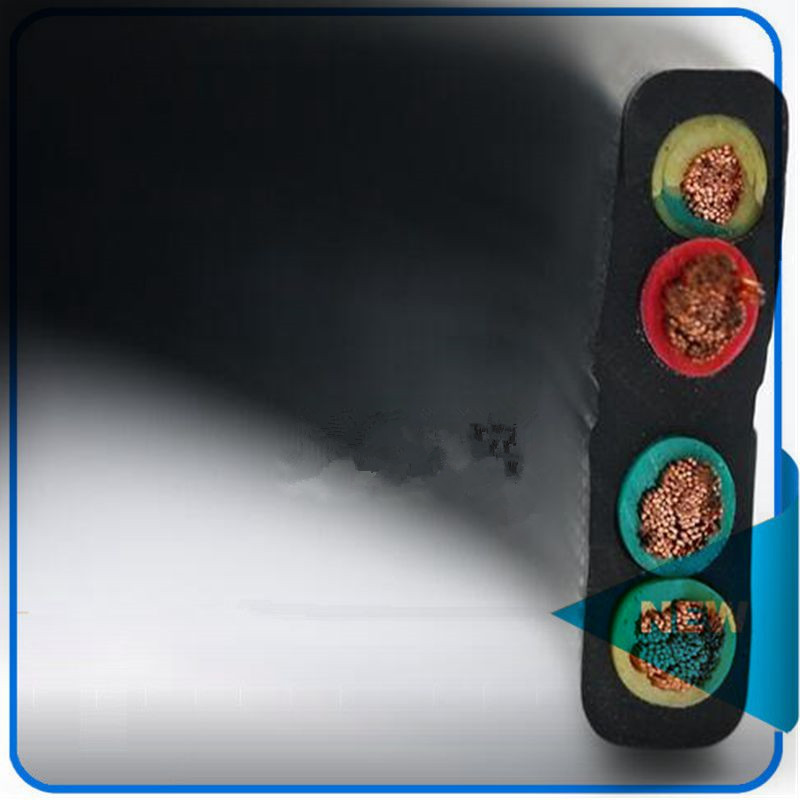

PVC 4 Core Flat Submersible Pump cables
 |
Product Name:
PVC 4 Core Flat Submersible Pump cables
Number :
 |
Product Description:
PVC 4 Core Flat Submersible Pump cables
Application :
Submersible Pump cables is a specialized product to be used for submersible pumps in a deep well. The area of installation is physically restrictive, and the environment is very hostile.
For continuous use in deep well to supply power to submersible pumps down to depths of 500 mtrs.
Cable Structure
Copper: flexible copper wire or tinned copper wire
Insulation:PVC
Outer Sheath:Speacial PVC : Black, Blue
Cores colour: Core Identification
3 core:Black, Light Blue and BrownRed, Yellow and Blue
4 core:Black, Light Blue, Brown, Yellow with Green core/ Green with Yellow core
Feature:
Excellent resistant to moisture, abrasion, grace, oil.
Longer Flex Life
Excellent mechanical & electrical propertise.
Standard: IEC 60227, BS 6500, DIN VDE 0281, IS 694
Technical Data
Operating tem.:-20°c to max.+80°C
Nominal voltage:1100 V
Test voltage:3000 V
Min. bending radius:6 x cable diameter
Flame propagation:Flame retardant test as per IEC 60332-1
PVC 4 Core Flat Submersible Pump cables
|
PVC Flat - 4 core
|
|
|||||||
|
Conductor
|
Insulation
|
Sheath
|
Current Rating at 40℃
|
|
||||
|
Nominal Area
|
No. & Dia. of wire
|
Nominal Thickness
|
Nominal Core Dia.
|
Nominal Thickness
|
Approx. Overall Dimensions
|
|
||
|
Thickness
|
Width
|
|
||||||
|
mm2
|
No./mm
|
mm
|
mm
|
mm
|
mm
|
mm
|
Amps.
|
|
|
1.5
|
22/0.30
|
0.8
|
3.25
|
1.3
|
6
|
15.8
|
14
|
|
|
2.5
|
36/0.30
|
0.9
|
3.84
|
1.3
|
6.5
|
18
|
18
|
|
|
4
|
56/0.30
|
1
|
4.5
|
1.45
|
7.6
|
21
|
26
|
|
|
6
|
84/0.30
|
1
|
5.3
|
1.5
|
7.9
|
24.3
|
31
|
|
|
10
|
140/0.30
|
1
|
6.5
|
1.8
|
9.9
|
29.7
|
42
|
|
|
16
|
224/0.30
|
1
|
8
|
1.95
|
11.8
|
36
|
57
|
|
|
25
|
350/0.30
|
1.2
|
10.1
|
2
|
14.7
|
45.1
|
72
|
|
|
35
|
490/0.30
|
1.2
|
11.5
|
2
|
16.2
|
50.1
|
90
|
|
|
50
|
703/0.30
|
1.4
|
13.6
|
2.2
|
18.3
|
58.1
|
115
|
|
|
70
|
988/0.30
|
1.4
|
15.3
|
2.2
|
20
|
66.5
|
143
|
|
|
95
|
1349/0.30
|
1.6
|
18
|
2.4
|
23.5
|
77.3
|
165
|
|
