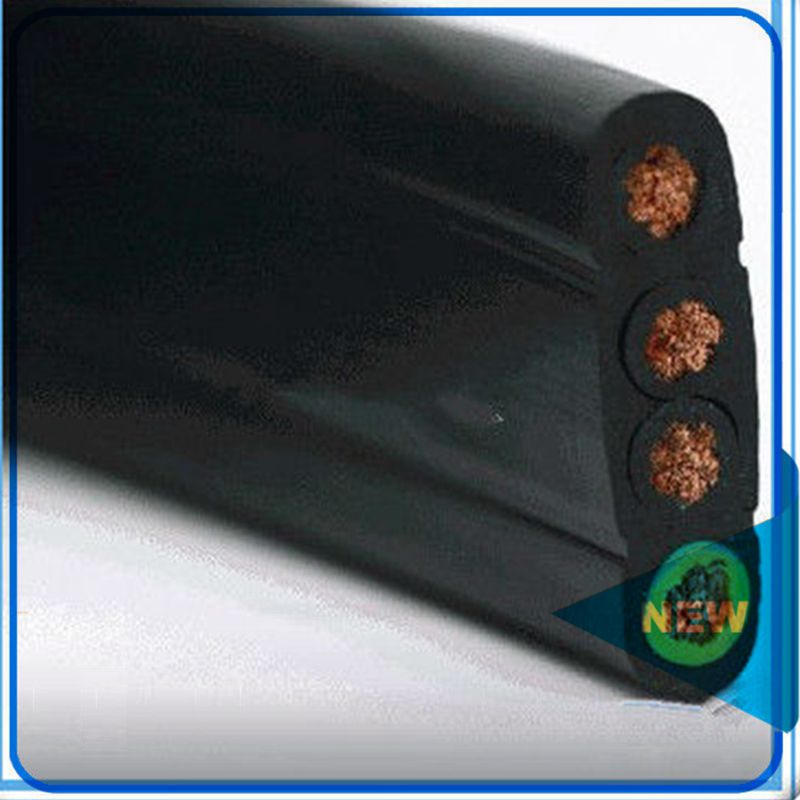

PVC insulated 3-4 core sheathed flat cables for internal wiring
 |
Product Name:
PVC insulated 3-4 core sheathed flat cables for internal wiring
Number :
 |
Product Description:
PVC insulated 3-4 core sheathed flat cables for internal wiring
Cable Structure
Copper: flexible copper wire or tinned copper wire
Insulation:PVC
Outer Sheath:Speacial PVC : Black, Blue
Cores colour: Core Identification
3 core:Black, Light Blue and BrownRed, Yellow and Blue
4 core:Black, Light Blue, Brown, Yellow with Green Line/ Green with Yellow Line
Cable Features
Good insulation properties when submerged in winter
Quality backed by 40 years experience in cable industry
Excellent resistant to moisture, abrasion, grace, oil
Longer Flex Life
Excellent mechanical & electrical properties
Standard: IEC 60227, BS 6500, DIN VDE 0281, IS 694
Application
submersible Pump cable is a specialized product to be used for submersible pumps in a deep well. The area of installation is physically restrictive, and the environment is very hostile.
Technical Data
Operating tem.:-20°c to max.+80°C
Nominal voltage:1100 V
Test voltage:3000 V
Min. bending radius:6 x cable diameter
Flame propagation:Flame retardant test as per IEC 60332-1
|
PVC Flat - 3 core
|
|
|||||||
|
Conductor
|
Insulation
|
Sheath
|
Current Rating at 40℃
|
|
||||
|
Nominal Area
|
No. & Dia. of wire
|
Nominal Thickness
|
Nominal Core Dia.
|
Nominal Thickness
|
Approx. Overall Dimensions
|
|
||
|
Thickness
|
Width
|
|
||||||
|
mm2
|
No./mm
|
mm
|
mm
|
mm
|
mm
|
mm
|
Amps.
|
|
|
1.5
|
22/0.30
|
0.8
|
3.25
|
1.15
|
6
|
12.8
|
14
|
|
|
2.5
|
36/0.30
|
0.9
|
3.84
|
1.15
|
6.4
|
14.6
|
18
|
|
|
4
|
56/0.30
|
1
|
4.5
|
1.15
|
7.4
|
16.8
|
26
|
|
|
6
|
84/0.30
|
1
|
5.3
|
1.15
|
7.9
|
18.7
|
31
|
|
|
10
|
140/0.30
|
1
|
6.5
|
1.4
|
9.9
|
23.7
|
42
|
|
|
16
|
224/0.30
|
1
|
8
|
1.4
|
11.4
|
28
|
57
|
|
|
25
|
350/0.30
|
1.2
|
10.1
|
2
|
14.7
|
35.5
|
72
|
|
|
35
|
490/0.30
|
1.2
|
11.3
|
2
|
16.2
|
39.5
|
90
|
|
|
50
|
703/0.30
|
1.4
|
13.6
|
2.2
|
18.3
|
45.5
|
115
|
|
|
70
|
988/0.30
|
1.4
|
15.3
|
2.2
|
20
|
51
|
143
|
|
|
95
|
1349/0.30
|
1.6
|
18
|
2.4
|
23.5
|
60
|
165
|
|
