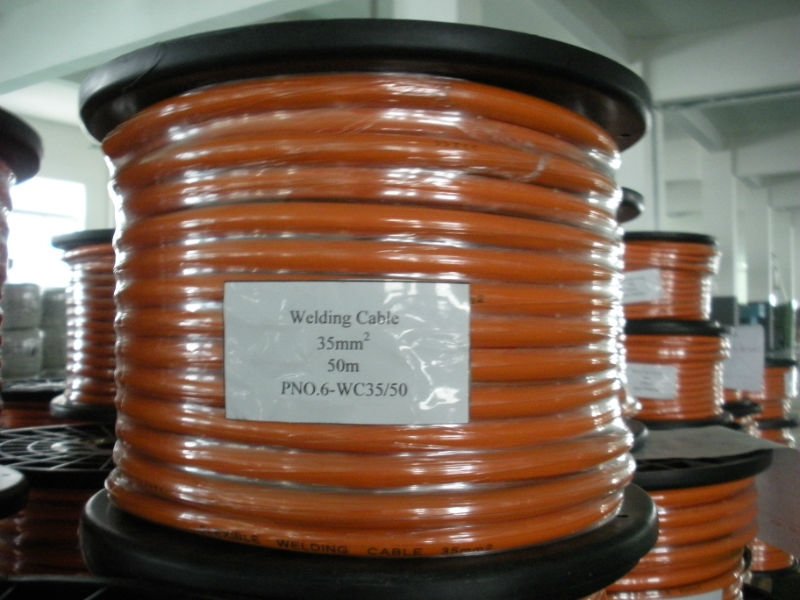

Welding Machine cable Battery Wire
 |
Product Name:
Welding Machine cable Battery Wire
Number :
 |
Product Description:
Specification:
Welding Cable: CCA wire / Copper wire / Rubber
Standard: IEC 60245
Certificate: ISO9001 CCC SGS
Cross Section: 10--185mm2

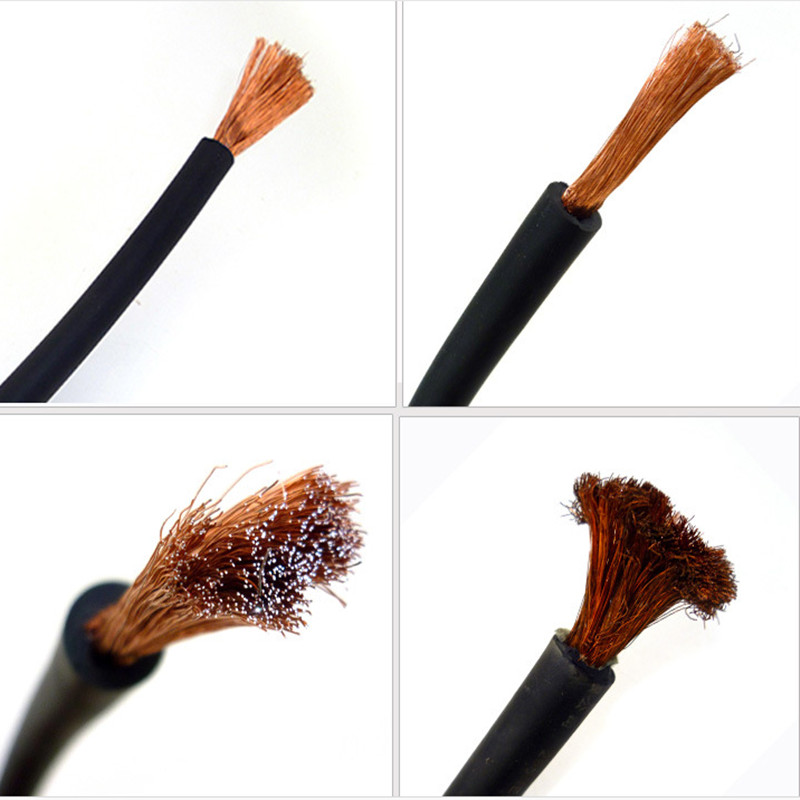

Structure:
Stranded (tinned) copper/ cca conductor, rubber/pvc insulation
Application:
It's used in the automobile industry in shipbuilding, in transport and conveyor system,
tool making machinery, welding robots etc.
Characteristics:
High elasticity, aging resistance & oil resistance
|
Type, Name and Working Temperature (see below cable)
|
||
|
Type
|
Name
|
Working Temperature of Core
|
|
YH
|
copper conductor natural rubber insulated welding machine cable
|
65℃
|
|
YHF
|
copper conductor horoprene rubber or other synthetic
|
|
|
rubber sheath welding machine cable
|
||
|
Common standards Working Temperature ≤ 60º C
|
|||||||
|
Conductor Section-area (mm2)
|
Core No. /Dia. (No./mm)
|
Nominal thickness of sheath (mm)
|
Overall Diameter (mm)
|
Max. Conductor Resistance at 20º C (Ω /km)
|
Approx. Weight (kg/km)
|
||
|
Min.
|
Max.
|
YH
|
YHF
|
||||
|
10
|
322/0.20
|
1.8
|
7.5
|
9.7
|
1.91
|
146
|
153.51
|
|
16
|
513/0.20
|
2
|
9.2
|
11.5
|
1.16
|
218.9
|
230.44
|
|
25
|
798/0.20
|
2
|
10.5
|
13
|
0.758
|
316.6
|
331.15
|
|
35
|
1121/0.20
|
2
|
11.5
|
14.5
|
0.536
|
426
|
439.87
|
|
50
|
1596/0.20
|
2.2
|
13.5
|
17
|
0.379
|
592.47
|
610.55
|
|
70
|
2214/0.20
|
2.4
|
15
|
19.5
|
0.268
|
790
|
817.52
|
|
95
|
2997/0.20
|
2.6
|
17
|
22
|
0.198
|
1066.17
|
1102.97
|
|
120
|
1702/0.30
|
2.8
|
19
|
24
|
0.161
|
1348.25
|
1392.55
|
|
150
|
2135/0.30
|
3
|
21
|
27
|
0.128
|
1648.5
|
1698.72
|
|
185
|
1443/0.40
|
3.2
|
22
|
29
|
0.106
|
1983.8
|
2020.74
|
